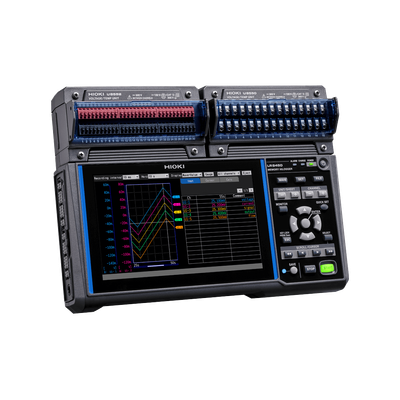

Hioki - Model LR8450-01 -Memory Hilogger

The LR8450-01 offers a sampling speed of up to 1 ms and up to 330 channels, depending on the types of plug-in or wireless modules that are selected. Collect data from wireless modules installed in remote or confined locations via a LAN connection. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.

Actual measurement example using CAN UNIT

This video shows how the MEMORY HiLOGGER LR8450-01 and CAN UNIT are used to measure the temperature of an actual vehicle. The analog data measuring the temperature inside the vehicle and the CAN data are simultaneously displayed on the waveform in real time. You can also see how the measured analog data is output as CAN signals in real time.

Wireless units can be easily registered in 2 steps!

Memory HiLogger LR8450-01 is a data logger equipped with wireless LAN.  It is ideal for collecting data in dispersed locations and locations where wiring is difficult. You can add up to 7 wireless modules and measure up to 330 channels. Will introduce to you two easy steps, to register the wireless modules onto the main instrument.

• Wireless LAN model expandable to 330 ch with wireless and plug-in modules
• Record voltage output from pressure and other sensors with 1ms sampling speed
• Directly connect strain gauge and measure signals in as fast as 1 ms intervals
• Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors

• Avoid wiring issues by minimizing cable length using wireless modules
• Monitor data captured remotely on PC with wireless LAN technology
