Mena Water - Membrane Bioreactors (MBR) Package Plant for Sewage Treatment
The membrane bioreactor (MBR) is a wastewater treatment process combining membrane filtration with biological treatment.This innovative technology offers several advantages compared with the conventionally activated sludge process. Among these advantages are higher biomass concentration, eliminating the needs of secondary clarifiers and improved effluent quality.s of secondary clarifiers and improved effluent quality.
MENA-Water transforms sewage to clear and high quality water. The small footprint of the treatment technology enables the systems to be integrated in natural, picturesque surroundings and to treat wastewater for highest standard usable for irrigation use.
Ultra Filtration
The core technology inside the MBR system is the membrane filtration unit which consists of ultra filtration membranes, arranged on stainless steel frame. The filtration reduces virus and bacteria by 99.9999%. Filter surfaces are continuously aerated through bubble diffusers to keep them clean. The membranes don’t need regular chemical cleaning except one or two maintenance clearings per year.
Standardized and Plug & Play
MENA-Water is developing compact package plants for MBR systems so that more than 1200 m³/day can be filtered in one 40-feet ISO container. The inside tanks are made of stainless steel sheets. Due to the standardized ISO container design the plants can be easily transported and quality testing at factory enables Plug & Play solutions at site.
- Fast delivery and start-up due to the mobile concept
- German quality equipment in stainless steel housing
- Compact design
- High packing density
- Effluent with irrigation water qualities (no microorganism, no smell)
- Very good price-performance ratio
- Low maintenance and minimum operation requirement
- Minimum construction work on site and easy to relocate

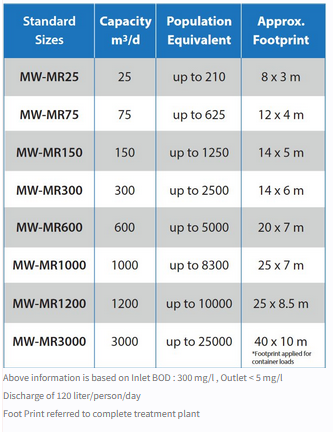

MENA-Water MBR containerized plants are standardized, availabe in different sizes
- From 10 to 1200 m³/day per single unit
- High capacities through modular arrangement
Our package plants comprizes all necessary mechanical equipment and plant control. At the U-Version aeration and buffering takes place inside underground water tanks.
MENA WATER offers tailor-made Membrane Bioreactors (MBR) to treat wastewater from different applications.
- Municipal wastewater
- Educational institutions and healthcare applications
- Hotels, labour and refugee camps, parks and military bases
- Building complexes (Offices, Shopping Centers, Small Township)
- Industrial wastewater, e.g.food and beverage applications
- Raw wastewater pump stations
- Pretreatment
- Permeate storage tank
- Sludge treatment
- Odor control system
- Mobile power generator
- Containerized operator room
