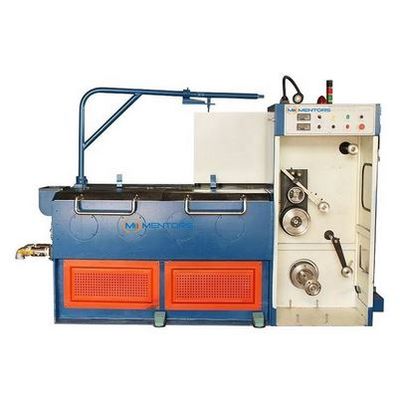

Mentors - Model SY-24B.1 -Galvanized Wire Drawing Machine
It has the advantages of fast production speed, high processing accuracy and easy operation. It has been a more popular metal wire processing equipment. Galvanized Wire Drawing Machine is used for drawing S.S wire from 0.6-1.0mm to 0.12mm-0.30mm. ?.Paramplpr!;:
Most popular related searches
- Max.DiesQty: 24
- Outlet wire size: 0.3-0.6mm
- Max speed: 500m/min
- Machine type: SY-24B.1
- Inverter control: Dual Inverter control
- Drawing dies No ./Max.: 24
- Inlet diameter: 0.50-1.20mm
- Outlet diameter: 0.30-0.60mm
- Drawing line speed: 500m/min
- Main motor: 5.5/7.5KW
- Take-up motor: 4KW
- Spool bobbin size: 0300 or according to customers requirements
- Traversing unit: Stepping motor
- Transmission type: Teeth belt + Flat belt
- LFine quality finished wire, smooth surface and uniform wire dia.
- PLC+ working speed can be adjusted by inverter control.more convenient to be operated.
- The fully enclosed protection system has good safety;the air tension tuning is adopted to ensure stable drawing.
- Easy to operate, one person can operate multiple machines at the same time.
- Full immersion lubrication system, driven by a belt, constant tension, low noise.
- Stepper motor traverses, the spacing is adjustable, and the traverse is stable.
- Galvanized Wire Drawing Machine is equipped with tangled wire protection device, the machine will stop automatically if the wire is disordered or broken.
- Delivery time: 30-45 working days
- After-sell service: Engineer will be dispatched at needed. The buyer provides engineer`s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
- Guarantee: 12 months since shipping date(exclude easily wearing part)
