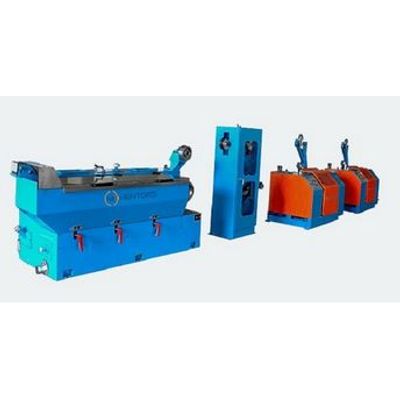

Mentors - Model SY-9DH.2 -Two Wires Intermediate Drawing Machine
Two wires Intermediate Wire Drawing Machine is used for drawing and annealing two copper wires from 2.5-3.5 mm to 1.0-2.8 mm.
Most popular related searches
- Max.DiesQty:9
- 0utletwire size: 1.0-2.8 mm
- Max speed: 2000 m/min
- Raw material: copper wire
- Vertical or horizontal annealing
- Machine Type: SY-9DH.2
- Drawing Wire No.: 2 Wires
- Inlet Dia. (mm): (p2.5~(p3.5
- Outlet Dia.(mm): 2*(p1.0~(p2.8
- Max. Die No.: 9
- Max. Line Speed(niniln): 1200
- Body Structure: Ironed Cast
- Drawing Capstan: Carbon fiber and Tungsten Plasma Capstan
- Main Motor Power (kw): 75
- Take-up Motor(kw): 15
- Capstan Dia.(Max.)(mm): (p300
- Fix Speed Capstan Dia.(mm): (p300
- Transmission Type: By Gear
- Lubrication Type: Full Immersion
- Tension Control: Air Pressure Type
- Take-up Type: Shaftless Type
- Take-up Bobbin Size(mm): (p500 (Bore (p127) (P630 (Bore <p127)
- Traversing Type: Gear Motor Type
- Brake: Disc Brake
- Manpower saving, space saving, electricity saving.
- Wear-resistant capstan can keep long life.
- Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
- Longer annealing section with tension ensure good and stable elongation.
- Unify250 cast-iron mainframe, precision machinery, no shock..
