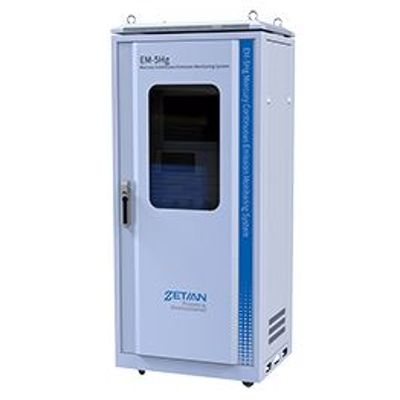

Zetian - Model EM-5Hg -Mercury Continuous Emission Monitoring System
EM-5Hg Mercury Continuous Emission Monitoring System is an environmental monitoring product based on Cold Atomic Fluorescence Spectrometry, developed for measuring real-time mercury concentration and accumulative mercury discharge in flue gas emission. It is composed by sampling probe, tracing pipe, pretreatment system, mercury analyzer, element mercury generator, ion mercury generator and nitrogen generator, which can online monitor gaseous element mercury, gaseous ion mercury and gaseous total mercury. The detection limit can reach 0.05μg/m3 .
Most popular related searches
continuous emissions monitoring system
continuous mercury emissions monitor
emissions monitoring system
continuous emissions monitoring
emissions monitoring
continuous mercury monitoring system
mercury emissions monitoring
atomic fluorescence
environmental monitoring system
flue gas emissions
- Adopt Cold Atomic Fluorescence Spectrometry; low detection limit, small temperature drift.
- Continuously extract raw gas in large flow into pretreatment system; strong adsorption resistance and fast response.
- Sampling probe adopts technology combining internal purge and external purge, long maintenance-free period.
- Detect dilution ratio in real time; calculate actual Hg concentration according to real-time dilution ratio to reflect working operating condition truly.
- Employ catalyst to react under 800℃, valence state conversion efficiency can reach 95%.
Applied in mercury concentration monitoring on exhaust emission occasions, including refining process of mercury ore, mercury catalyst recovery process, coal-fired power plant, etc.
- Measuring technology: Cold atomic fluorescence
- Range: 0~20μg/m3~200μg/m3 (customizable)
- Indication error: ≤5%
- Repeatability: ≤1%
- Stability: ≤1%/1h
- Zero drift: ≤1%F.S.
- Span drift: ≤1%F.S.
- Dimension: 800mmx600mmx1800mm
- IP grade: cabinet IP42, others IP65
- Power supply: (220±15%)VAC, 5000W
- Working temperature:-20℃~50℃
- Working humidity: 0~95%RH (non-condensing)
- Compressed air: 0.9MPa, 0.25m3/min, clean, oil-free & water-free
