Ohio Lumex - Model RP 92 -Mercury in Liquid Analyzer

SHARE

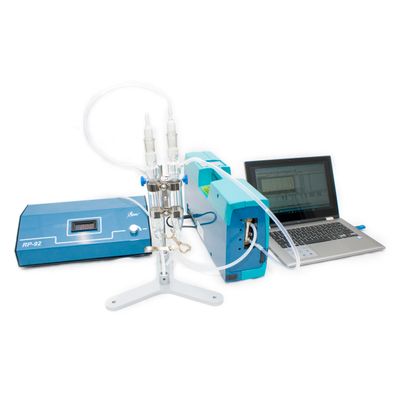

Used as an attachment for the RA-915M, the RP-92 provides a unique method for determining mercury concentrations in liquid samples such as water, blood and urine for environmental monitoring, technological process controls, medicine and other scientific research. The RP-92 attachment is a generator of mercury vapor which is produced by reducing Hg (II) into its elemental form using the cold vapor technique (CV).
Most popular related searches
mercury analyzer
mercury analyzer attachment
mercury analysis
mercury monitoring
environmental monitoring system
atomic absorption spectrometry
liquid sampling
pollution monitoring
drinking water
scientific research
  • Based on differential Zeeman Atomic Absorption spectrometry using high frequency modulation of light polarization.
  • Mercury determination without gold amalgamation
  • Ability to use single-path or multi-path analytical cell allows for a wide dynamic range of up to 3 magnitudes
  • Wide dynamic measurement range of up to 3 magnitudes without sample dilution
  • Visualization of mercury output from the sample, user-friendly computer interface;
  • Calibration stability using NIST Traceable Standards
  • Zeeman Background Correction rules out any potential interferences even for a sample with a high content of organic substances
  • Portability
  • Measurement of low mercury concentration in drinking water and natural water
  • Control of mercury content in wastewater and washouts;
  • Mercury determination in blood, urine and other liquid samples.

RA-915M mercury analyzer with RP-92 attachment can be used in ecology, sanitary, medicine, and geological-geochemical survey.

  • waste, natural, and dinking waters;
  • foodstuffs;
  • biological objects (urine, blood) for diagnosis of risk groups.

Occupational pathology and toxicology surveys:

  • screening population survey;
  • monitoring of medical treatment for mercury toxicity and further rehabilitation.

Mercury pollution monitoring:

  • monitoring of a demercurization process involving any chemical reagents;
  • quality assurance of the demercurization;
  • determination of mercury content in washouts;
  • determination of mercury content in surface and ground waters.
  • Power Supply : 220/110 V, 50/60 Hz
  • Power consumption : 20 W
  • Nonstop operation time : 8 hours
  • Size of the pumping unit, mm : 340*240*120
  • Rate of air flow through the gas line, l/min : From 0.4 to 4.0
  • Sample volume : 50 µl to 20 ml
  • RA-915M (RA-915+) mercury analyzer;
  • RP-91 attachment;
  • RA-915M (RA-915+) software.
