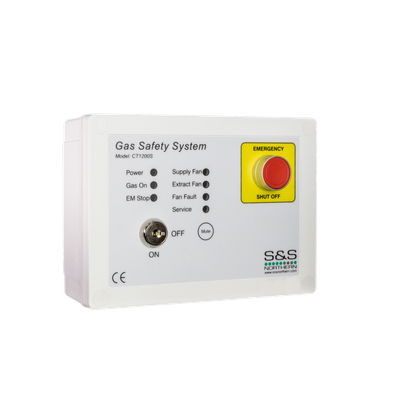

OGS Merlin - Model 1200S -Merlin Gas Interlock Systems for Commercial Kitchens
The Merlin Range of Gas Interlock Systems, specifically engineered for commercial kitchen environments, is crafted with both end users and installation professionals in mind. These systems provide essential safety features, ensuring compliance with AS/NZS 5601.1.2022 standards. The Merlin gas interlock panels are recognized for their ease of installation, user-friendly interface, and cost-effectiveness. A notable product in this lineup is the Merlin 2000S, which incorporates gas proving, gas check functionalities, CO2 protection, and gas detection capabilities, enhancing safety measures significantly. Other variants, like the Merlin 1200s and 1250, are tailored to meet various operational needs, with the 1250 model featuring two built-in fan current monitors to optimize ventilation system performance. The combination of these features positions the Merlin range as a reliable solution for maintaining stringent safety standards in commercial kitchen operations.
The Merlin 1200S ventilation interlock system is designed for kitchens where all appliances have built in flame failure devices and there is no need for gas pressure proving. The Merlin 1200S acts as an interlock between the ventilation system and the gas solenoid valve. It ensures the gas solenoid cannot be opened unless the ventilation system is proven to be working and working at such a speed that is effective to exhaust the fumes from the appliances.
The fans can be monitored through air pressure switches. To operate the Merlin 1200S the fans should be turned to the ‘on’ position, once the panel receives a signal to indicate the fans are operating the key on the panel can be turned to the ‘on’ position and this will open the gas solenoid valve. If the fans should fail, the ‘fan fault’ LED on the panel will illuminate and the gas solenoid will close. Additional sensors and safety shut off buttons can be wired into the panel
- Interlocking with fans using either Air PD switches.
- Will accept remote emergency knock-off buttons.
- Key switch operation gives the user full control.
- Clear LED display for system indications.
- Compatible with both BMS and fire alarm systems.
- Straightforward to install.
- Covered by Oceania Gas Safety 3 year warranty.
- Height – 140mm
- Width – 190mm
- Depth – 62mm
