TAPC Kimre - Mesh Pads
Kimre mesh pads offer high efficiency mist elimination. The pads employ a unique woven structure and a variety of filament sizes and weave densities. The woven material produced is in relatively thin layers (2.5 mm to 50 mm thick) with a pad being assembled from a number of layers which may be the same or may vary in weave and composition. As such a pad can be designed to achieve a given mist removal performance, liquid handling capability etc. This method of construction results in predictable, reliable performance and also allows for easy cleaning by pulling the individual layers apart and washing them. Kimre pads can also be used as mass transfer media in packed towers.

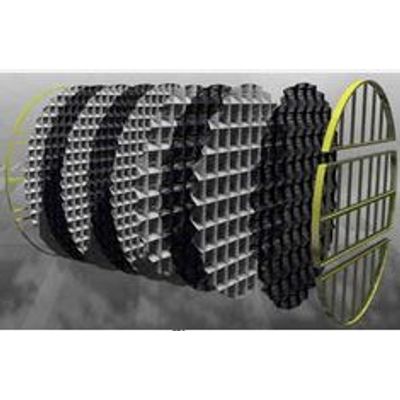

B-GON® Mist Eliminators operate at low pressure drops, giving higher throughput at lower energy usage. Kimre technology makes this possible because all B-GON® filaments are engineered to align perpendicular to your gas flow for maximum droplet removal efficiency. This unique interlacing is in sharp contrast to the random orientation of competitive products of knitted mesh. B-GON® mesh combines the best features of knitted mesh and plate type eliminators. The ladder arrangement of the two sets of filaments causes a change in direction of vapor flow which enhances droplet removal by impaction, interception and centrifugal actions. This also produces a cross-flow of captured liquid that flushes particulates from the media. Composite pads are a unique Kimre feature. Because particle size distribution and flow conditions are subject to unpredictable variations and in-plant data on them are not full or completely known, Kimre has developed composite pads for stagewise droplet removal. These uniquely designed B-GON® Mist Eliminators have several layers of differing coarseness (see picture above). Heavy loads of solid particulates or liquids can be stopped with coarse styles while less coarse styles eliminate small liquid droplets. B-GON® composite pads are a robust design, less sensitive to fluctuating operating conditions.
