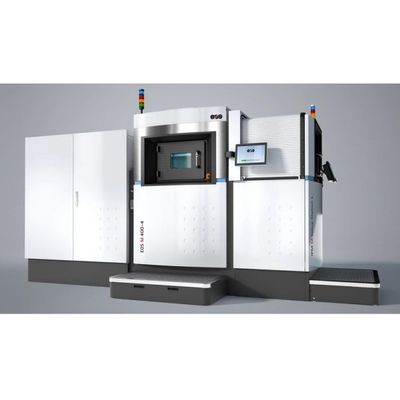

EOS - Model M 400-4 -Metal 3D Printer

Metal 3D Printer Up to 4x more productivity. Four precise 400-watt fiber lasers. Build volume of 400 x 400 x 400 mm.

Most popular related searches

Construction Volume: 400 x 400 x 400 mm (15.8 x 15.8 x 15.8 in) (height incl. build plate)
Laser Type: Yb-fiber laser; 4 x 400 W
Precision Optics: 4 F-theta-lenses; 4 high-speed scanners
Scan Speed: up to 7.0 m/s (23 ft/s)
Focus Diameter: approx. 100 µm (0.004 in)
Power Supply: 3 x 50 A
Power Consumption: max. 45 kW / typical 22 kW
compressed air supply: 7,000 hPa; 20 m³/h (102 psi; 706 ft³/h)"
Machine Dimensions (W x D x H): 4,181 x 1,613 x 2,355 mm (164.6 x 63.5 x 92.7 in)
Recommended Installation Space: min. 6.500 x 6.000 x 3.300 mm (256 x 236 x 130 in)
Weight: approx. 4,835 kg (10,659 lb)
Software: EOSPRINT 2, EOSTATE PowderBed, EOSCONNECT Core, EOSCONNECT MachinePark, Materialise Magics Metal Package and modules

Specification
