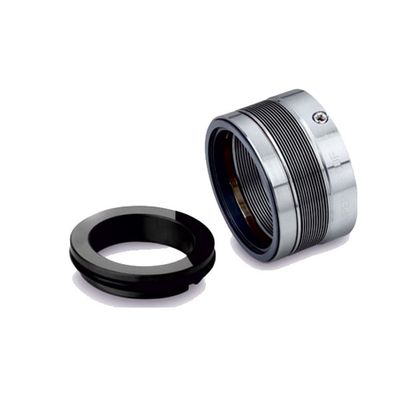

Alflaah - Model Type 09AS -Metal Bellow Seal

Single Acting, Independent of Direction of Rotation. Face Materials – Carbon / Silicon Carbide, Carbon / Tungsten Carbide, Silicon Carbide / Tungsten Carbide. Metal Parts – SS 316, SS 304, carpenter 42. Seal Elastomer – Hast- C, Am350, Inconel. Applications – Chemicals, Petrochemnical, Refinery, Corrosive Chemical. Operating Limits – Shaft Diameter d1 :25….100mm. Pressure p : 25 bar (max). temperature : -70….+350°C. Speed: 3000 r.p.m.
