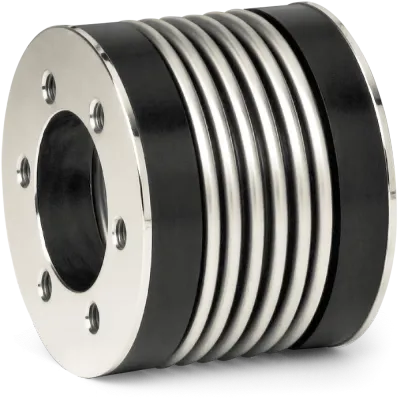

R+W - Model BK1 -Metal Bellows Coupling with Simple Flange Mounting

For simple flange mounting to special drive components. Custom flange patterns available.

Most popular related searches

Temperature range
- -30 °C to +100 °C (-22 °F to +212 °F)
Design
- Two mounting flanges concentrically assembled to the flexible bellows
- Brief overloads of up to 1.5x the rated torque are acceptable.
Material
- Bellows: high grade stainless steel
- Hubs: steel

Service life
- R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
- Overall shaft / hub clearance of 0.01 – 0.05 mm
Special solutions
- Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
- For use in hazardous zones 1/21 and 2/22, the metal bellows has been authorized under directive 94/9/EG and is available with certification
