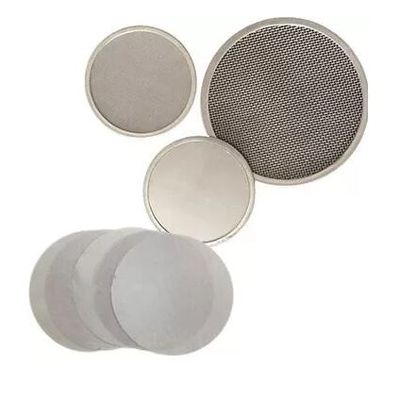

SaifilterMetal Mesh Filter Discs

SHARE

We can custom-make various wire mesh filter discs according to the information you offered. Single-deck or multilayer woven meshes are parceled in the aluminum conjugates. The frame package with a rigid form contributes to control the flatness of the package and improve its own airtightness and consistency to meet your specific applied requirement.

Most popular related searches

The design and production of metal mesh filter disc are aimed at providing filter protection to liquid and gas flow system. These cost-effective wire mesh filter discs provide a significant increase of filter area for a similar installment. The sealed packages are used to give an ultrasonic clean to ensure every mesh filter disc is not polluted and can be installed at any time.

These lightweight stainless steel filter discs are capable of operating with a variety of fuids at temperatures from-270-450°C (-454-842°F), and with differential pressures up to 3bar (43psi).

Metal mesh filters are available in two distinct types, rimmed and unrimmed.

Selection Range

  • Materials: aluminum, brass, copper, stainless steel, and other alloys
  • Shapes: the plain weave of square, rectangle, circle, and oval
  • Woven types: twill weave, Dutch weave, Plain Dutch weave, Twill Dutch weave
  • Customized diameter: 15-450mm
  • Gridding size: 10-500 grids
  • Accuracy class: 20-300µm
