Drossbach Maschinenbau GmbH

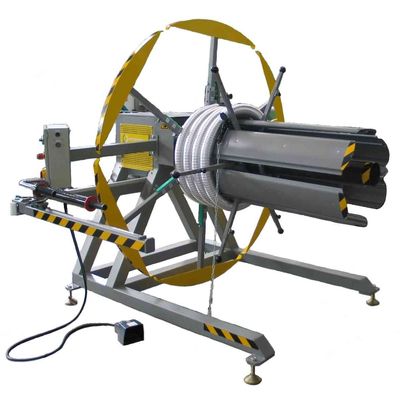

Drossbach - Model Flexi-Wind -Metal Pipe Machine
High-quality coiler for flexible chimney and ventilation pipe, single and double wall.
Most popular related searches
- Adjustable inner core for minimized packing sizes.
- Flexible coil widths for different product lengths.
- Optional shrink foil arm for perfect product finish.
- Many scales for easy adjustment.
- Simple operation with a foot paddle.
- Continuously adjustable speed. Forwards and backwards.
- Coil inside diameter 0,4 - 1.0 m / 16" - 39"
- Max. coil outside diameter 2,0 m / 6.5 ft.
- Coil width 0,3 - 1,25 m / 12" - 49"
- Max. coil weight 90 kg / 198 lbs
- Max. pipe diameter 250 mm / 10"
- Flexible chimney liners acc. to EN 1856, tightness class P1
- Flexible HVAC ducts acc. to DIN 24146
