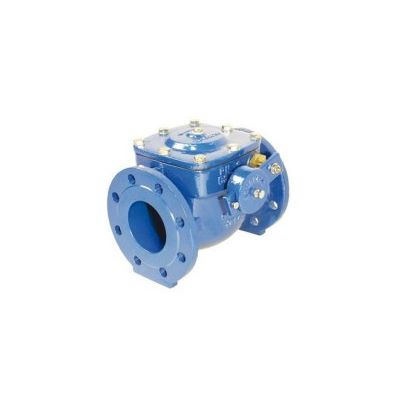

Metal Seat Swing Check Valve

Metal Seat Swing Check Valve

FromT-T Pumps Ltd.

SHARE

Metal Seat Swing Check Valve with an optional lever weight used to prevent reverse flow, it is suitable for potable water, wastewater and sewage applications.

Most popular related searches

swing check valve

fusion bonded epoxy coating

metal seated ball valve

Technical Specification

Standard: BS EN1074.Pt 3:2000, BS EN12334:2001 & BS5153:1974
Range: DN50-DN400
Flanges and Drillings: BS EN 1092-2:1987 Table 9 (PN16)
Face to face dimensions: BS EN 558-1:1986, Table 10, Basic Series 10
Maximum working pressure:16 Bar
Hydrostatic Pressure Tests:
Seat - 1.1 x PN (17.6Bar)
Body - 1.5 x PN (24.0Bar)
Temperature Range: -10° C to 70°C, Insulate at 0°C and below
Coating: Blue fusion bonded epoxy (WRAS listed)

Features

Unique lightweight ductile iron design
Durable fusion-bonded epoxy coated
Suitable for horizontal and vertical installation
Positive hexagonal drive between shaft and hanger
Optional external lever arm and weight assembly
Drilling bosses and 1/2" BSP air release as standard
Robust low maintenance design
Safety guards available
