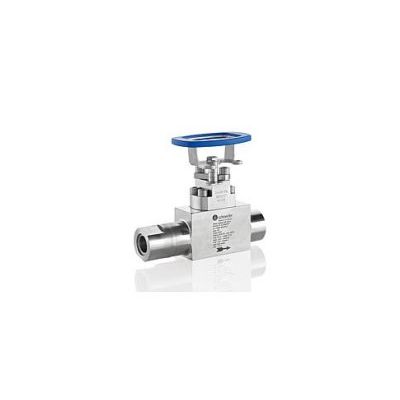

Armaturenfabrik - Model KM Series -Metal Seated Ball Valves
AS-Schneider KM Series Ball Valves are available with a lot of options. The ball valves are designed for extreme operating conditions with a Pressure Rating of Class 2,500 and temperatures up to 842°F (450°C). The ball valves are Fire Safe tested acc. to ISO 10497 and API 607 and meet the requirements of TA-Luft. The below mentioned valve (see drawings) is the standard type. If you need the dimensions for your individual type please contact the factory. Bore Size: 0.39" (10 mm).
Most popular related searches
- KM Metal Seated Ball Valve - Bore Size 0.39" (10 mm)
- 9 Seal Material of Packing and Bonnet Seal / Ball Seat:
- Graphite / Stainless Steel, Tungsten Carbite Coated
- A6 Inlet Butt Weld End: 1/2" Pipe
- P Outlet Wall Thickness: Schedule 80
- LN Outlet Thread Type: NPT Female
- 6 Outlet Thread Size: 3/4
- S Material: 1.4401 / 1.4404 / 316 / 316L
Further Information
AS-Schneider KM Series Ball Valves are available with a lot of options. The ball valves are designed for extreme operating conditions with a Pressure Rating of Class 2,500 and temperatures up to 450°C (842°F). The ball valves are Fire Safe tested acc. to ISO 10497 and API 607 and meet the requirements of TA-Luft. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider KM Series Ball Valves, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the valves for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156).
