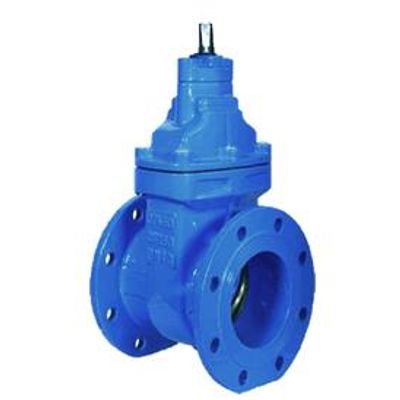

CTV-Armaturen - Model Type 02-F4 -Metal Seated Gate Valve with Bare Shaft
Type 02: Metal seated Gate Valve (F4) acc. to DIN EN 1074-2 with bare shaft. Metal seated – with bare shaft – face to face length acc. to DIN EN 558-1 series 14, F4 of ductile cast iron GGG. DN50 – DN600 PN 10, PN16. DN50 – DN300 PN25. Range of application: Drinking Water. All parts in contact with medium according to UBA-KTW and DVGW W270 (optional NBR for sewage water).
Most popular related searches
metal seated gate valve
metal seated ball valve
gate valve
epoxy coating
sewage water
drinking water
spindle
sewage
Standards:
- Designed according to EN 1074 part 1 & 2, Designed according to EN 1171.
- Face-to-face length according to EN 558 Table 1 Series 14 - F4.
- Standard flange according to EN 1092 (ISO 7005-2), PN 10, 16, 25.
- Tightness according to DIN EN12266-1, leakage rate A/B.
Product properties:
- Brass wedge nut with lubricating properties for optimal compatibility with the spindle.
- Sealing ring with fine surface finishing to achieve optimal contact with the housing seat ring.
- Guide rails for the wedge that ensure uniform closing.
- Through-hole for the spindle in the wedge to prevent water accumulation or buildup of impurities.
- Round, recessed EPDM hood seal.
- Recessed and sealed top screws made of stainless steel, surrounded by the top seal.
- Full passage.
- Inner and outer dual-component epoxy coating, blue.
- Suitable for horizontal or vertical installation.
Accessoires:
- Handwheel
- Chainwheel
- Gearbox
- Auma
- Pneumatic
