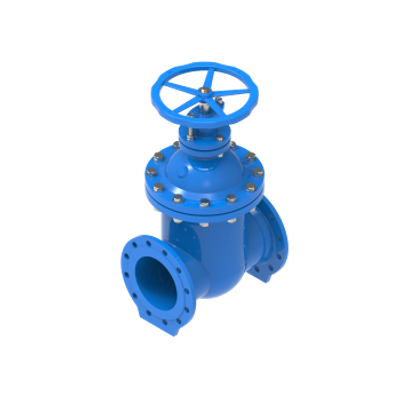

MIV - Model V3-01 -Metal Seated Round Body Gate Valve
Art.Nº: V3-01: Application: water, drinking water, waste water (other on request). DN 40 -1000. Pressure: PN 10/16/25/40.
Most popular related searches
Material:
- body/wedge/bonnet - EN-GJS-400-15
- stem - X20Cr13
*other materials on request
Max. working temperature: 60°C (higher temperature on request)
Operation:
- handwheel, electric actuator, extension spindle (other on request)
- Face to face: DIN 3202 F15
- Installation flanges according to 1092-2 (other on request)
- Test according to EN 12266
