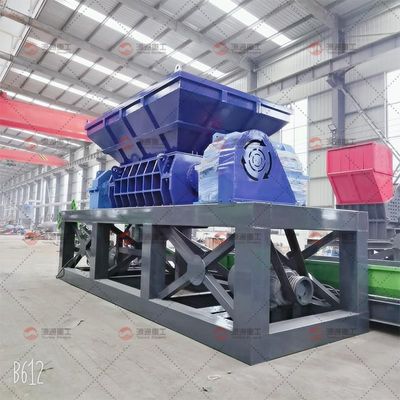

Yuantong - Model YTS Series -Metal Shredder

• Power: 22-90kw*2
• Cutter material: H13,H13K,M6V,9CrSi,SKD-11,Cr12MoV
• Applicable material: Scrap metal, thin materials, plastics, wood, cables, and various electronic products

The metal shredder is mainly used for shredding light and thin metals with strong strength, increasing its bulk density for transportation and recycling.

The metal shredder shreds objects such as metal barrels, refrigerators, automobiles, scrap steel, steel furniture, etc. The scrap metal processed by this machine is usually in strips or flakes. It can effectively increase the density of scrap metal and reduce the economic cost caused by material transportation after supporting the metal crusher. At the same time, the metal charge can be processed by the machine during the iron smelting process. Effectively reduce the difficulty of steel smelting and reduce the sulfur and phosphorus content in steel.

The material enters the shredding box through the feeding system, and the shredding blade is carried on the box. The material is shredded into small pieces by the comprehensive action of the shredding blade torn, squeezed, and sheared and discharged from the lower part of the box. .

1. Heavy movable knife with high crushing efficiency. The knives are made of chromium silicon casting, which is a good material in the current shredder, and have a long service life.
2. The frame plate is thick, can resist high torque, and is very strong.
3. It adopts microcomputer (PLC) automatic control, with start, stop, reverse and overload automatic reverse control functions.
4. The equipment has the characteristics of low speed, high torque, low noise, and dust can reach environmental protection standards.
5. Easy to adjust, low maintenance cost, economical and durable. 6. The thickness of the cutter and the number of claws can be changed according to different materials.
