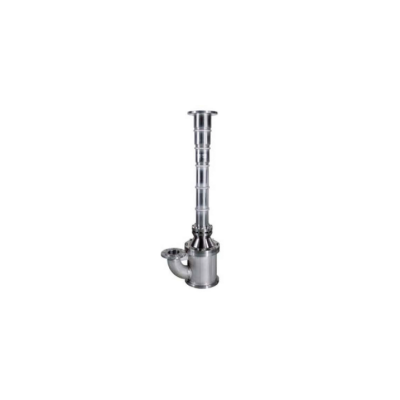

CP-Pumpen - Metallic or Solid Plastic Venturi Injector
FromCP Pumpen AG
CP Pumpen offers customised, seal-less injectors that work according to the Venturi principle. Outstanding quality and proven design guarantee safety and energy efficiency.
Most popular related searches
Functions & applications
- Ingeniously simple pump concept (jet pump) without any moving wearing parts: for pumping liquid or gas.
- Optimal as a sump pump for unloading tanks with hazardous or flammable liquids from containers with no outlet on the tank floor.
- Ideal for mixing inside a container.
- Can be combined with the CP MKTP sump pump as a tank unloading system: for unloading larger containers.
Construction
- Driven by a jet of motive fluid from a feed pump.
- Large choice of materials consisting of rust-free, high-alloyed stainless steels, nickel and nickel-base alloys, other special alloys and plastics.
- Can be adapted to the relevant pumping task by means of individual construction. Send us an inquiry.
- Capacity Arrow Black
- 60 m3/h
- Heads Arrow Black
- 75 m
- Pressure rating Arrow Black
- PN 16
- Temperatures Arrow Black
- -20 to +150°C
