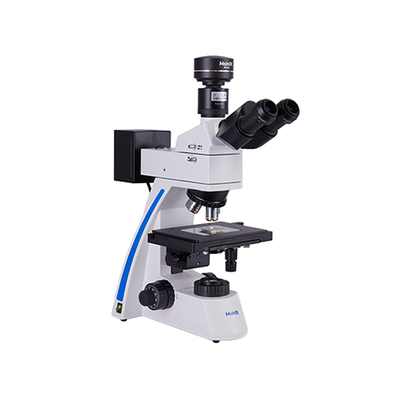

Micro Shot - Model MJ31 -Metallurgical Microscope

MJ31 is a metallurgical microscope suitable for observation of transparent and non transparent object, it has transmitted and reflected lighting system, both are takes use of cool LED lamp with less thermal after long time working, to offer better clarity. The epi-illumination is kohler lighting and internal set polarization components to achieve polarizing observation. Objectives are long working distance and compatible to glass slide has cover glass and sample without cover glass.What is more, it is flexible expand to dark-field observation if needed. The microscope is good applied to observation of semiconductor inspection, FPD, PCB baord, metal material, industry manufacturign field, geology, electronics and etc.

Objective lens:
Long working distance plan objectives.

Objective lens:
Observation with polarized light.

Eyepieces:
Extra large field of view eyepiece, the field of view can reach 22mm, making observation more flat and comfortable.
