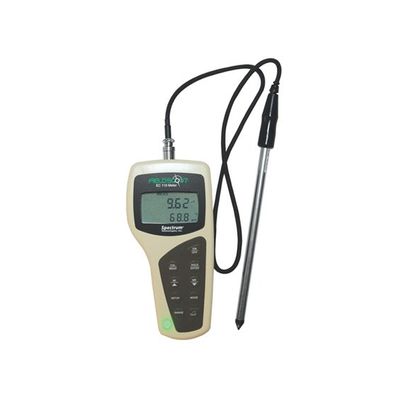

FieldScout - Model EC 110 -Meter

Geo-reference EC measurements with built-in data logger

• Combines Spectrum’s patented direct-insert EC probe with a built-in data logger
• Accuracy of ±1%
• Measurement ranges:
• 0.00 to 199.9 µS/cm (resolution 1 µS/cm)
• 0.0 to 19.9 mS/cm (resolution 0.01 mS/cm)
• Geo-reference your data by connecting to any GPS receiver that has a serial output option*
• Equipped with internal data logger and RS-232 port
• Records 4,096 measurements (1,488 with added GPS/DGPS option)
• Configure and download meter with FieldScout software (included)**
• Includes hard carrying case, Conductivity Cell (item 2220CC), software, four AAA batteries, PC interface cable and EC calibration standard

*   GPS interface requires two cables. The GPS/DGPS cable (item 2950CV5) is available from Spectrum.
    A PC serial interface cable supplied by the manufacturer of the GPS receiver is also required.
**    PC cable connects to a computer USB port.
