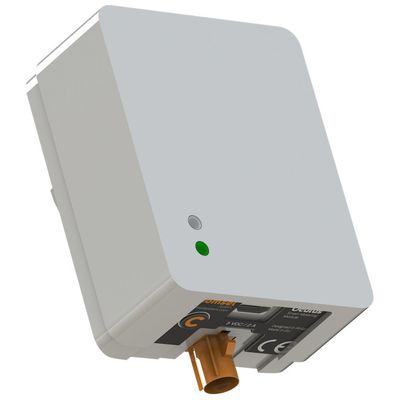

Comsel Oculus - Meter Independent Communication Module

Oculus combines state-of-art systems and technology with a robust and highly available platform. It supports online, over-the-air reconfiguration and updates, has an ability to store several million values locally and can be configured to log readings at intervals down to 10 seconds.

In order to enable zero-configuration deployment almost everywhere, Oculus comes equipped with a 3G/GPRS modem, LTE modem or ethernet. In addition to the LTE/3G modem or ethernet Oculus is capable of using redundant connection paths using the built in WiFi-module. Oculus uses state-of-the-art network security in order to ensure secure delivery of meter values as well as verifiable software updates and configuration changes.

Oculus supports all types of metering registers and is able to monitor power quality or district heating quality parameters locally for fast actions, dynamically log changes and notify the control systems if abnormal situations appear. The module supports measurements in both import- and export directions and can use multiple configurable tariffs in both directions. With an efficient and configurable alert system the module can quickly detect deviations such as for instance, phase outages, voltage problems from phase dropouts to sags and swells, and instantly alert you about the situation.

Weight: 100 grams
