Sunkaier Genipump - Metering Pump
A metering pump moves a precise volume of liquid in a specified time period providing an accurate volumetric flow rate.
Delivering a high level of precision and repeatability in the metering of chemicals across a broad range of industrial processes, GENIPUMP delivers quality metering pump for applications requiring reliability in even the most challenging environments.
The GENIPUM metering pumps are designed for a wide range of applications where liquids have to be metered or blended. The product range comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the GENIPUMP pseries can be combined for process and metering pumps to achieve the required flow rate and pressure parameters. With various liquid end materials and complemented by a variety of accessories to suit the process.
A Continuous Kneader Reactor (SK3000S) Is A Specialized Piece Of Process Equipment That Integrates Both Mixing And Chemical Reaction Functionalities In A Single Continuous Operation. Here Are Some Typical Applications For SK3000S:
- Polymer Processing
- Flow rate: Up to 660 l/h
- Pressure: Up to 124 bar
- Material of pump head: SS 316L, PP, PVDF and PVC-U
- Stroke length: 10 to 25 mm
- Diaphragm diameter: 12-200 mm
- Motor: 0.18/~45 kW
- Mechanisms
- Positive return type
- Low-noise integral worm gearbox, oil bath lubricated
- Rotating parts on ball bearings to minimize wear
- High-precision linear stroke adjustment, both manual and via electrical acuator.
Flexible
- Optimal capacity adaptation to widely varying production processes
- Variable stroke for each pump allows independent adjustment of each component
- Variable speed drive allows flow rate variations while maintaining constant proportions
Economical
- Automation allows higher production efficiency to be achieved
- Chemical Processing
- Food & Beverages
- Detergents
- Energy
- Environmental
- Oil & Gas
- Personal Care
- Petrochemica
- Pharmaceutical & Biotechnology
- Pulp & Paper
- Textile
- Water Treatment
- Individual combinable metering pump gears with built-in low noise worm gear

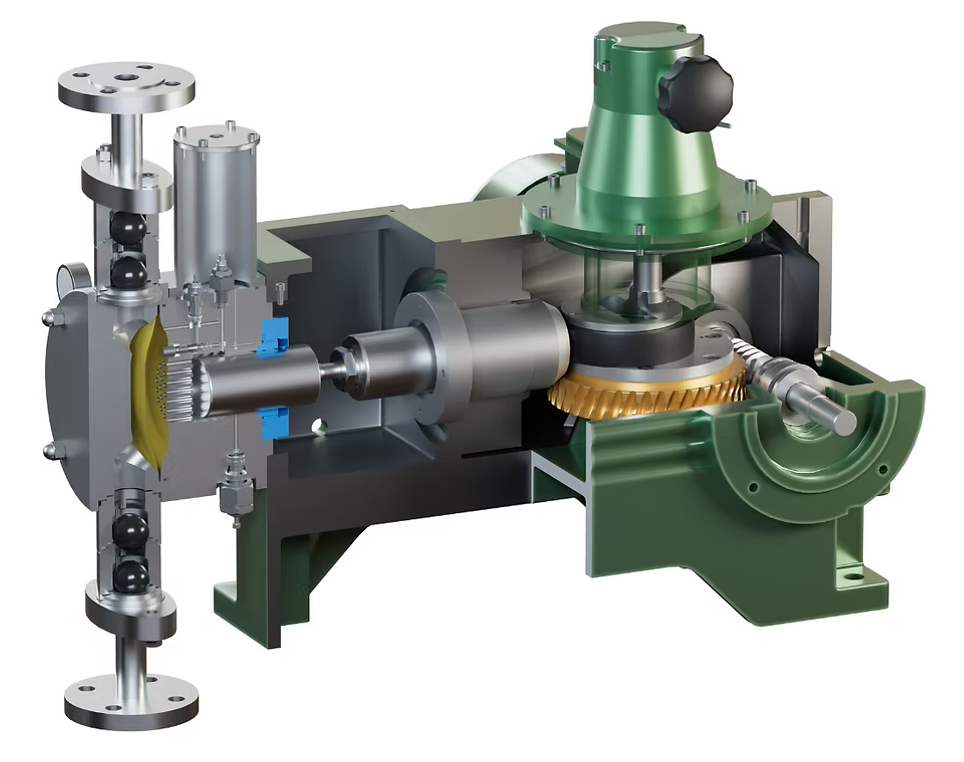

- Individual stroke length adjustment mechanism with harmonic eccentric positive return crank drive utilizing the unsurpassed Z-shaped crankshaft
- Individual pumphead sizes allowing to build pumps with a maximum flow rate of as little as 0.4 l/h up to 40000 l/h per pumphead
- Variety of options for flow rate control from manual to remote
