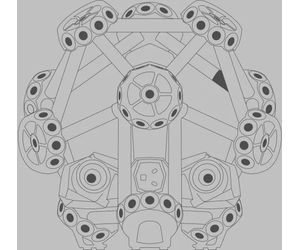

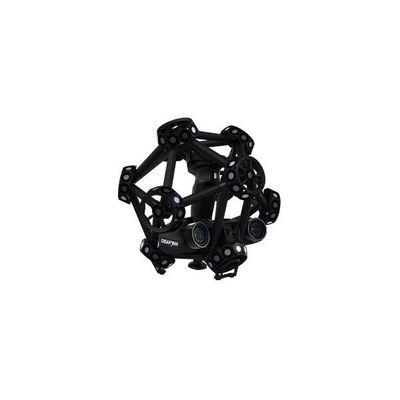

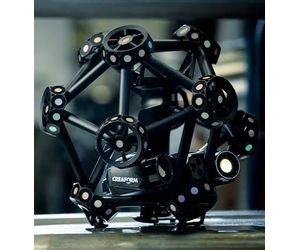

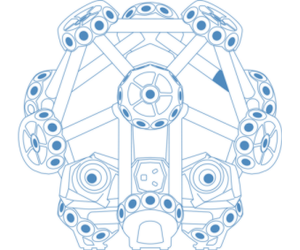

MetraSCAN - Optical CMM 3D Scanners and Probe
The MetraSCAN 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability—all while accelerating 3D measurement workflows. This optical CMM scanner has been engineered to perform highly accurate and repeatable metrology-grade measurements and 3D geometrical surface inspections. When paired with the HandyPROBE, Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.
The most complete 3D scanners for metrology-grade measurements on all materials, MetraSCAN 3D is a powerful inspection solution that is insensitive to instabilities and harsh environments.
- Accuracy: 0.025 mm
- Resolution: 0.025 mm
The MetraSCAN 3D features 30 blue laser lines and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster.
- High measurement rate
1,800,000 measurements/second - Large scanning area for all types of parts
30 blue laser lines - Ultra-quick setup
No warm-up time; users can be up-and-running in less than 5 minutes - 360° Magnetic Targets
For quick and easy setups
Optimized visibility for dynamic tracking
The AVE feature allows for automatic acquisition volume extension only by moving the C-Track, without requiring extra measurements. With its advanced integrated photogrammetry and scaling algorithms, the MetraSCAN 3D ensures more accurate, repeatable, and human-error-free measurements on large parts.
- Accuracy
0.025 mm (0.0009 in) - Automatic Volume Extension
0.025mm + 0.015mm/m (0.0009in + 0.00018in/ft) - Reliable acceptance tests
Based on VDI/VDE 2634 Part 3 standard
Based on ISO 10360 standard
ISO/IEC 17025: 2017 accredited laboratory - Shop floor accuracy with dynamic referencing
Measurement accuracy insensitive to environmental instabilities
High resolution
Measures all types of complex and highly detailed parts
Highly versatile, the MetraSCAN 3D can be used to scan various part sizes and surface finishes in real time—all with the same device.
With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.

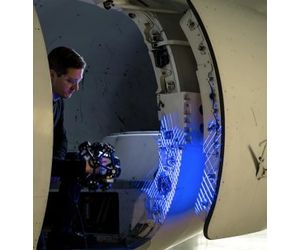

- Blue laser technology
Ideal for shiny and reflective surfaces - Large and easily extendable measurement volume
Wider than other portable CMMs
No leapfrog required
Integrated photogrammetry - Optional HandyPROBE
Combination of both 3D scanning and probing
No targets required - New Setup Assistance Tools
Guidance volume display
High-level setup diagnostics
MetraSCAN 3D’s innovative technology enables unprecedented accuracy, simplicity, portability, speed and efficiency for 3D inspections in your production environment. 3D measurements of a variety of complex parts, sizes, materials and finishes has never been this easy.
- Accuracy: 0.025 mm (0.0009 in)
- Volumetric accuracy: 0.064 mm (0.0025 in)
- Measurement resolution: 0.025 mm (0.0009 in)
- Measurement rate: 1,800,000 measurements/s
- Part size range (recommended): 0.2–6 m (0.7–20 ft)

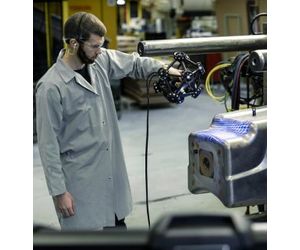

The MetraSCAN 3D optical CMM scanner is synonymous with speed, accuracy and versatility. As the perfect metrology solution for quality control, quality assurance, inspection and reverse engineering applications, the MetraSCAN 3D generates highly accurate dimensional data in any type of harsh production environment and with any type of component—regardless of part size, material, finish and complexity.
Innovating technology that provides accuracy, simplicity, portability as well as real speed to your metrology-grade applications.
Creaform’s metrology centres are located around the world and offer the following services* in different languages:
- Software and hardware technical support helpline
- 3D scanner basic and advanced repair
- Equipment maintenance, tuning and calibration
- Loaner services
- 3D scanner component replacement
- Parts reselling
- Warranty renewal
* Services may vary depending on each metrology center.
- Creaform designs, manufactures, and calibrates the MetraSCAN 3D with the most sophisticated quality management system and according to internationally recognized standards, the ISO 9001 and ISO 17025.
- The MetraSCAN 3D’s acceptance test are based on VDI\VDE 2634, which is ISO 17025 accredited to guarantee traceability aligned with international standards.
- Each MetraSCAN 3D is delivered with a personalized certification and fully documented test results.
- Product and support based on international metrology standards
- At Creaform, product and service quality is our top priority. Being pioneers in portable 3D measurement technologies, we are committed to exceeding our customer requirements by developing innovative solutions.
- We are invested in continuously improving processes, setting new standards for the industry and ensuring full satisfaction of our clientele.
