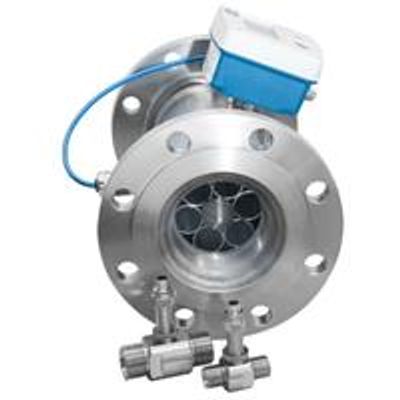

Metri - Model IC-GTM -Gas Turbine Flow Meter

• Available in a range of pipe/line sizes
• Delivers accurate measurement
• Excellent linearity & repeatability
• 316 Stainless steel construction
• Flexible design with custom options available
• High pressure rating of up to 1000 bar
• Wide range of dry and wet gas applications ie. Hydrogen etc.
• High temperature option up to 350°C
• Selection of flow instruments & displays for compact or remote installation
• 50 – 2500 Hz frequency range
• Choice of outputs including pulse, 4-20 mA
• ATEX rated option available

The Metri IC-GTM is compatible with the following displays:

• Metri FMS – flow rate / totalizer 4-20mA & alarm output
• Fluidwell F series displays

• Pipe Size : DN15 – DN300 (other sizes are available on request)
• Material Body : Stainless steel 316 (316L available as an optional extra)
• Flow Range : 0.44 – 2000 m³/hr
• Find your flow rate
• Accuracy : 2%
• Operating Temp Range : -40ᵒC up to 350ᵒC
• Pressure Range : 400 bar as standard (up to 1000 bar is available on request)
• Outputs & Comms : Pulse / analogue output modules; flow transmitter; Variable reluctance coil only (mV)
• Insertion / Inline : Inline (Horizontal or vertical flow rising, full pipe only)
• Fluid Type : Gas (ie. Hydrogen, Nitrogen, Xenon, Natural gas, methane, propane etc), steam, air
• Applicable Liquids : Dry and wet gases compatible with 430, 174PH and Duplex stainless steels
• Power : None, Battery -24vd 110-240 VAC
• Approvals : CE, ATEX EEx ia Ex d, PED category 2 Gases and Liquids, IECEx, CSA
• Connection Type : BSPP (parallel) & BSPT (taper) female threaded, DIN & ANSI flanged; other on request eg PNXX, tri-clamp, NPT, RJT, Weco, Autoclave
• Calibration : This product can be calibrated for 5 or 10 point, to maintain the optimum accuracy this product needs to be recalibrated annually.
