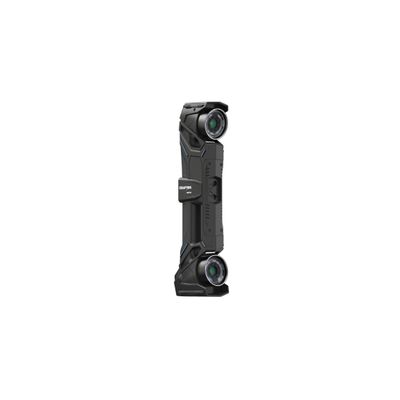

HandySCAN - Model MAX Series -Metrology-Grade Portable 3D Scanners

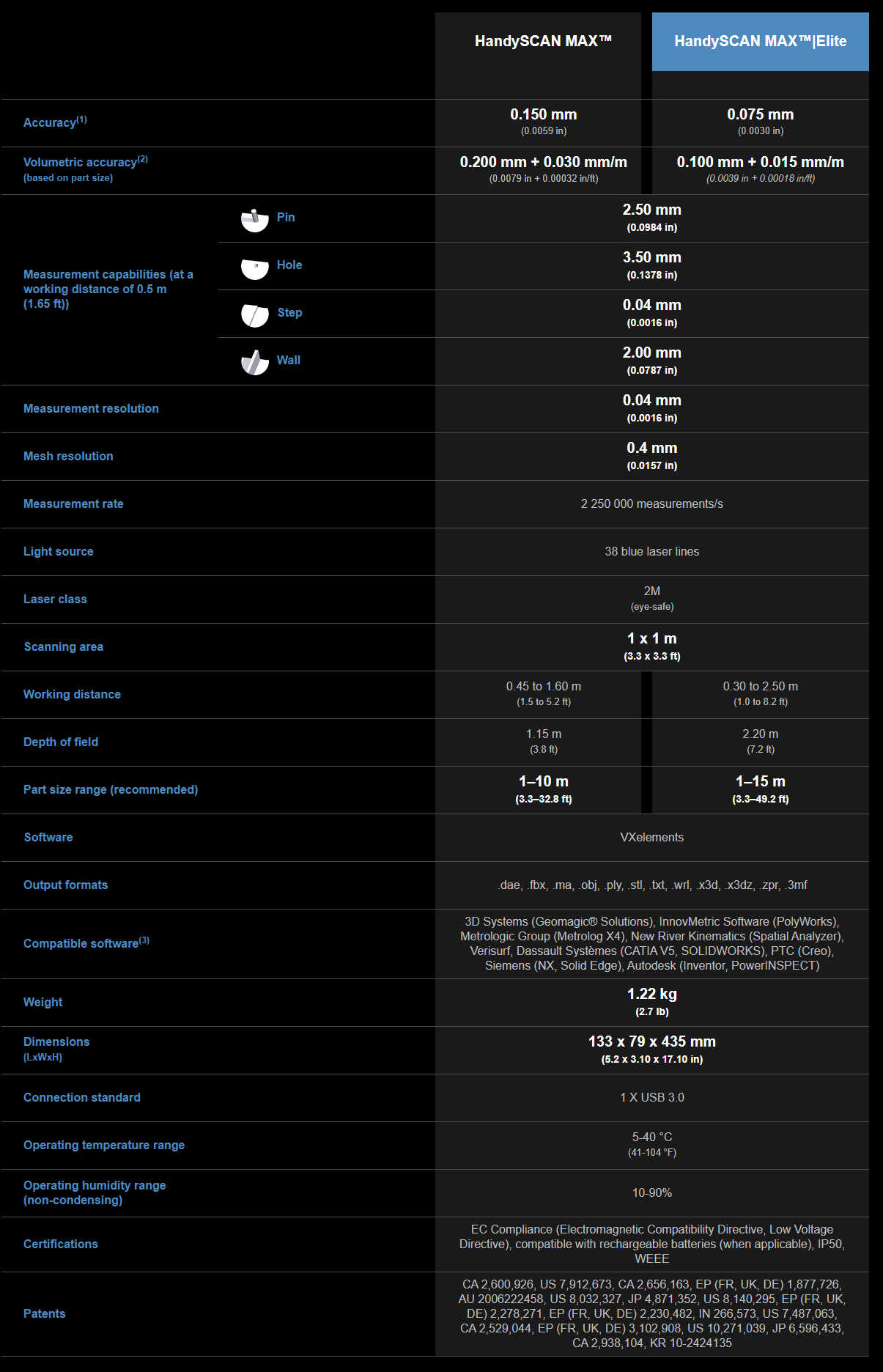

HandySCAN 3D|MAX Series is the 3D scanner for measuring large part sizes—up to 15 m (50 ft)—quickly and easily, providing metrology-grade results in mere minutes. It’s also engineered to capture fine details on smaller areas with remarkable quality. Accuracy: 0.075 mm (0.0030 in). Resolution: 0.04 mm (0.0016 in). When accuracy meets versatility and portability. Combining the effect of portability, accuracy, speed, and simplicity, which are inherent to the HandySCAN 3D line-up, the new MAX Series is optimized to acquire highly accurate 3D measurements on large and complex parts typically present in the aerospace, transportation, energy, mining, and heavy industries. Engineered to capture fine details and scan large volumes equally well, the HandySCAN 3D|MAX Series enables professionals to measure large parts and assemblies in a simpler scanning process, resulting in high-quality 3D scans in just a matter of minutes.
Combining the effect of portability, accuracy, speed, and simplicity, which are inherent to the HandySCAN 3D line-up, the new MAX Series is optimized to acquire highly accurate 3D measurements on large and complex parts typically present in the aerospace, transportation, energy, mining, and heavy industries.
Engineered to capture fine details and scan large volumes equally well, the HandySCAN 3D|MAX Series enables professionals to measure large parts and assemblies in a simpler scanning process, resulting in high-quality 3D scans in just a matter of minutes.
Due to its 38 laser lines and large scanning area, the HandySCAN 3D|MAX Series is the 3D scanner for measuring large part sizes—up to 15 m (50 ft)—quickly and easily, providing metrology-grade results in mere minutes.
Its Flex Volume feature offers an adjustable, flexible working distance—from 0.3m (1 ft) to 2.5m (8.2 ft). This means that the user can scan smaller areas with remarkable quality at a short distance and measure large parts at very high speed from a longer distance.
- Quick setup and scanning process
- Large and extendable measuring volume
- Instant mesh and ready-to-use files
Featuring dynamic referencing and volumetric accuracy optimization, this 3D measurement solution is engineered to work in harsh environments and deliver high accuracy on large measurements, regardless of the user’s experience level.
With its Real-Time Calibration capability, the MAX Series integrates the calibration step directly into the scanning workflow, performing it automatically and seamlessly for the user. Its Flex Volume feature also provides high precision and a fine level of detail on areas captured at a short distance.
- Measurement accuracy insensitive to environmental instabilities
- ISO 17025 accredited and compliant with the VDI/VDE 2634 part 3 standard
- Integrated photogrammetry
- Fine detail capacity
The HandySCAN 3D|MAX Series can master any surface type, including shiny, oily, and even reflective finishes, and it does so without the need for surface treatment or part preparation.
With its sophisticated algorithms and image processing operation, the Smart Surface Algorithm feature optimizes surface measurement, thus offering better tracking, better performance, and better readings of difficult, contrasted finishes.
This means that users can enjoy a simpler scanning process.
- Blue laser technology
- Real-time mesh visualization
- Plug and play

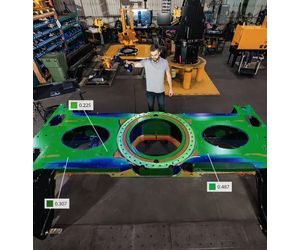

Quality control
The HandySCAN 3D|MAX series complies with the quality standards of the aerospace, transportation, energy, mining, and heavy industries, where large parts and assemblies prevail.
Reverse engineering
The MAX series meets the need for speed and high resolution, essential in product development, while offering unparalleled portability, necessary for measuring large parts that are difficult to move.

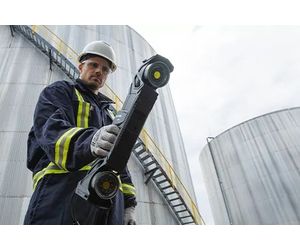

Non-Destructives Testing (NDT)
Harmonized with VXintegrity and requiering fewer targets than the BLACK series, the HandySCAN 3D|MAX Series is the ideal 3D scanner for measuring large structures, such as pressure vessels.
The HandySCAN 3D line-up is known as the industry standard in portable metrology-grade 3D scanners and a recognized, proven and trusted technology. Combining the inherent benefits of the HandySCAN 3D, the MAX Series is optimized to acquire highly accurate 3D measurements on large and complex parts with no surface preparation required.
Innovating technology that provides accuracy, simplicity, portability as well as real speed to your metrology-grade applications.
International Metrology High-Quality Standards
At Creaform, product and service quality is our top priority. Being pioneers in portable 3D measurement, we are committed to exceeding our customer requirements by developing innovative solutions. We are invested in continuously improving processes, setting new standards for the industry and ensuring full satisfaction of our clientele.
Creaform’s metrology centres are located around the world and offer the following services* in different languages:
- Software and hardware technical support helpline
- 3D scanner basic and advanced repair
- Equipment maintenance, tuning and calibration
- Loaner services
- 3D scanner component replacement
- Parts reselling
- Warranty renewal
* Services may vary depending on each metrology center.
- Creaform designs, manufactures, and calibrates HandySCAN 3D scanners with the highest quality management system according to internationally recognized standards ISO 9001 and ISO 17025.
- HandySCAN 3D|MAX series acceptance test is based on VDI\VDE 2635 part 3 which is ISO 17025 accredited to guarantee traceability to international standards.
- Each scanner is delivered with a personalized certification and fully documented test results.
