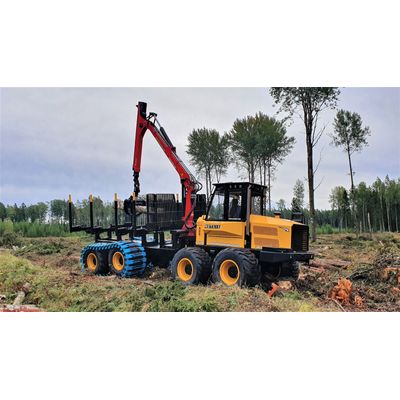

Metsis - Model 808F -Forwarders

WEIGHT

• Load capacity: 18,000 kg
• Net weight: 21,000 kg

DIMENSIONS

• Width: 3210 mm
• Length: 10000 mm
• Height: 4050 mm
• Clearance: 720 mm

ENGINE

• 6-cylinder Sisu turbo diesel
• Rated power: 204 kW
• Fuel tank capacity: 200 l

TRANSMISSION

• Hydrostatic-mechanical
• 2-speed gearbox: NAF
• Travel speed slow: 0 - 9 km / h
• Travel speed fast: 0 - 25 km / h
• Maximum traction power: 180 kN

AXLES

• Portal identical tandem axles front and rear: NAF, transmission by gears
• electro-hydraulically operated differential locks front and rear
• Rear-wheel drive release in faster gear

GOVERNANCE

• Hydraulic frame control
• Rotation angle: ± 43 °

BRAKING SYSTEM

• Hydraulic multi-disc "wet" oil brakes front and rear
• Parking and emergency brake with spring pressure, front, and rear

TIRES

• Front / rear: Nokian 780 / 50-28.5

HYDRAULIC SYSTEM

• Hydrostat pump: Danfoss
• Hydrostatic motor: Danfoss
• Max operating pressure: 42 MPa
• Parker Load Sensitive Pump with 145 l / min, 1000 rpm, Working Pressure 21.5 MPa
• Hydraulic tank capacity: 150 l

ELECTRICAL SYSTEM

• Control system: IQAN Full Machine Control
• Supply voltage: 24 V
• Generator: 100 A
• Batteries: 2 x 150 A
• Work lights: 16 x 50W LED
• Forklift
• Mesera or Epsilon
• Reach: 10.0 m
• Control: with two mini-controls

CAB

• Spacious and bright cabin
• Efficient manual air conditioning
• Ergonomic driver's seat with compressor
• For maintenance lifting the cab moves to the side
• OPS, ROPS, FOPS tested cab

• Fuel fill pump
• Wheel chains
• Wheel tracks
• Winch
• Hydraulic filling pump
• Webasto extra heater
• Hydraulically operated plow
• Additional middle load poles
• Rear additional load poles
