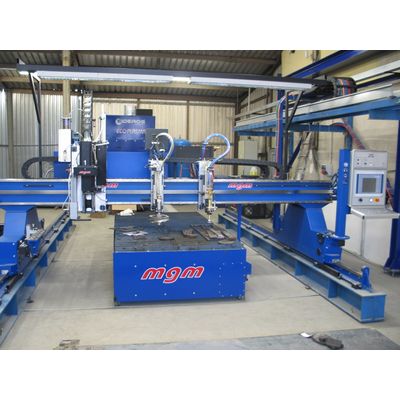

MGM - Model Omnicut -Cutting Machine
FromMGM spol. s r.o.
The high quality standard of the machines made by company MGM, spol. s r.o. with very high ratio price/performance and price/utility, robust gantry design, double-sided driven in the X axis, long life and geometric stability, extraordinary static and dynamic characteristic, guiding rails in Y axe for technology supports are in maintenance-free and lubrication-free design, two guiding rails version in Y axe – for light or heavy equipment, planetary gears - pinion/toothed rack, backlash-free, maintenance-free and lubrication-free, high positioning speeds (up to 20 m/min), high movement accuracy during cutting and positioning.
Most popular related searches
non-ferrous metal
drilling unit
planetary gearing
gas controller
gas control
process automation
screening system
drill cuttings
Torch suspensions - Z axe
- oxy fuel technology – electric with capacitive height control system for setting of torch /material distance
- plasma technology – electric with programmable height control system for setting of torch /material distance
Machine track - X axe
- robust, high stable, on the H-profile installed
- modular design, precisely machined with grinded racks
- planetary gears - pinion/toothed rack, backlash-free, maintenance-free and lubrication-free
Drives in X and Y axes
- precise AC servo-drives controlled by frequency amplifier
- maintenance-free solution
Control system
- developed and made by MGM
- software of the control system also developed by MGM
- easy operating thanks to OS MS-Windows
- 15“ LCD Touch-screen Display
- for devices with basic equipment until processes with automated parameters transmission
- with possibility to add nech technologies – plasma and oxy-fuel bevel cutting heads and drilling units
Technology
- oxy-fuel cutting
- a combination of oxygen / acetylene or oxygen / any of the usual slow burning gases
- with equipment for high-speed or high-performance cuts
- for limit material thicknesses – usual (up to 150 mm), middle (up to 200 mm), large (up to 300) and very large (more then 300 mm) thickness
- with manual or proportional gas control
- “without” or “with” gas addressing system for torches
- with one or more torches, or three-torches bevel cutting units
- plasma cutting
- using simple air-plasma sources
- using fine quality plasma sources equipped with torches with more than single gas circuit
- using hi definition plasma sources equipped with manual or automatic gas consoles for precise supply of the gases for plasma torch
- of mild steel, low- and high-alloyed steels and non-ferrous metals
- with torch installed in bevel cutting unit
- drilling and threading
- with customer´s required parameters
Programming software
- SAPSproW in standard version or with upgrade for oxy-fuel or plasma bevel cutting units or drilling unit
- with HW key for individual or net operating
