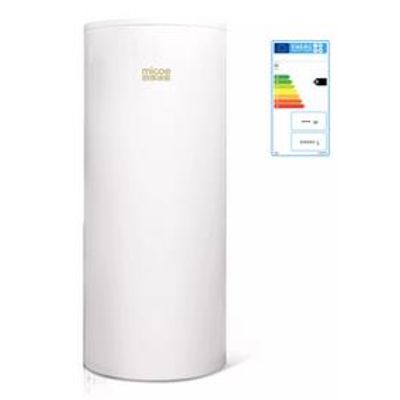

Micoe - High Pressure Water Tank

SHARE

The upright tank can keep the water temperature at different level. It can heat the top water instantly. The special structure can prevent from mixing the cold and hot water together.

Most popular related searches
water tank
pressure relief valve
pressurized water tank
high-pressure water
water heating
relief valve
drain pipe
tank locating
pressure and temperature sensor
water pressure tank
  1. The tank is located in the building, the connection pipe between the tank and water tap is very short, so that hot water can be used instantly and seldom cold water flows out.
  2. The tank is located in the building , the hot water loses less energy than the normal one.
  3. The heat collector and the water tank is separated, that makes the system combine with the building perfectly, which will not effect the sightseeing of the building and the environment around.
  4. Back up with electric heater so that in the day without sunshine hot water can also used.

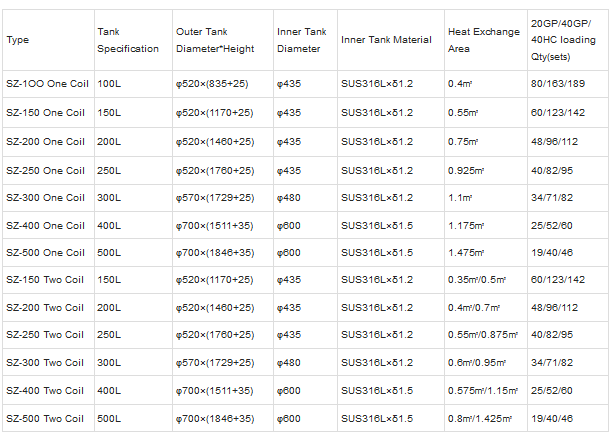

  5. Capacity: 100L,150L,200L,250L,300L,400L,500L.
  6. Inner Tank: Stainless steel 1.2mm SUS316L/porcelain inner tank
  7. Outer Tank: painted steel-0.5mm/Stainless steel-0.5mm
  8. The heat insulation material: Polyurethane.
  9. The thickness of the insulation: 45mm.
  10. The test pressure: 10 bars
  • electrical heater
  • the temperature and pressure relief valve.
  • the sensor.
  • the copper coil solar geyser heat exchanger: standard is with one. Customers could select tanks with two coils so the tank capacity is up to 200L.
  • the drain pipe.
