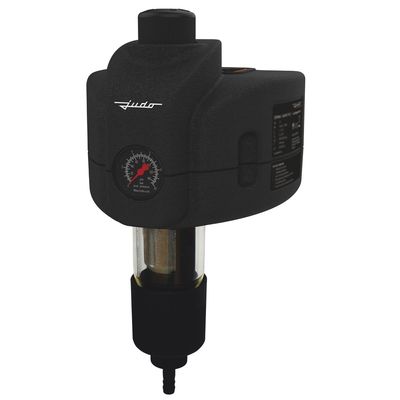

JUDO - Model JPCS-FP -Micro-Leakage Pipe-Care Protection System

Combination of leakage protection, drinking water fi ltration and addition of polyphosphates. Covering made of recyclable EPP protects against condensation. Product consisting of: leakage protection system (according to DIN 3553) with housing made of high-quality plastic (PN 10); turbine fl ow meter with hall sensor; ball valve with servomotor and manual override for shutting off the water fl ow when individually preselectable limit values are exceeded (max. water quantity, max. water fl ow and max. time of water use) and when a micro-leak is detected; automatic activation of holiday mode aft er 72 hours without water use; stand-by function; learning mode for automatic determination of optimum limit values; control electronics with membrane keypad and multi-cell LCD display for operation, cause of shut-off and other messages as well as for setting the leakage protection function; plug-in power supply (230 V/50 Hz); with potential-free fault signal; connection option for several fl oor sensors (max. 10 pieces). Backwash protective fi lter with fi lter housing made of high-quality plastic (PN 10); stainless steel fi lter screen; cleaning unit; handwheel for backwashing of the fi lter screen with simultaneous cleaning of the inspection window; with hose connection; pressure gauge; replaceable dosing cartridge with transparent pressure vessel (PN 10) fi lled with polyphosphate minerals. Including built-in rotary fl ange with bayonet connection made of brass with screws, threaded connection in accordance with EN 10226-1; horizontal or vertical installation possible.

Optional connectivity: JUDO Connectivity-Module for connecting the JPCS, JPCS-FP, JPCS-FB and JPCS-FD via LAN connection (WLAN through optional WLAN-Repeater) to a home network and the Internet, iOS / Android and browser app available for worldwide access to comprehensive information, automated messages and functions such as the setting of the leakage protection system and activation of the i-safe+ shut-off valve. Enables the adaptation to individual consumption habits via programmable opening and closing times.
