Agri Business International, Inc (ABI)

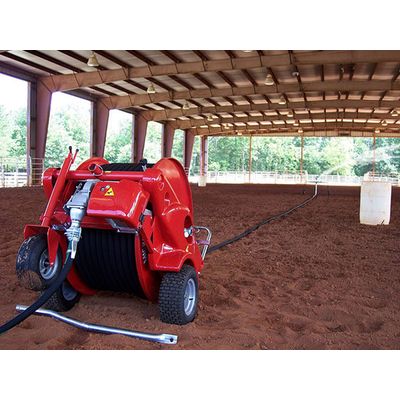

Micro - Model 405 Series -Hose Reel
The Micro 405 Series Irrigation Travelers from ABI are ideally suited for sports fields, landscape areas, horse arenas and small acreage farms requiring irrigation at an affordable cost. Micro 405 Series offers a dependable and economical solution with simple operation and minimal labor requirements.
Most popular related searches
shut-off valve
hose reel
quick coupler
water cycle
wheeled cart
pressure gauge
booster pump
control valve
utility water
water valve
Standard Features
- Low pressure turbine with maintenance free gearbox.
- Minimum Pressure requirement of 35 PSI. (Max. 110)
- Automatic drive shut off valve at end of irrigation.
- Automatic water shut off valve.
- Adjustable width wheeled cart.
- Part circle sprinkler with 2 nozzles.
- Glycerin filled pressure gauge
- Scroll type hose-guide for even wind up of hose.
- Speed control valve for accurate application rates.
- Extra wide floatation tires.
- 12 foot supply hose with quick couplers.
- Automatic cart loading and lifting.
- Rotating third wheel.
- Lockable drive system cover
Optional Features
- Honda 5.5 hp booster pump assembly with Komet sprinkler.
- 26-foot Boom for light applications.
- Wide turf tires for less damage to sportsfields.
- The patented AquaStop and shut-off bar allows for the drive system and sprinkler to be turned off at the end of watering cycle.
- The accurate hose winding mechanism allows for a more even winding of the PET hose.
- Cart loads automatically onto lifting frame shutting off water at the end of the run.
- Adjustable width galvanized sprinkler cart.
- The simple turbine drive system eliminates the need for pulleys, belts, sprockets, chains and valves, keeping maintenance to a minimum
- and utilizing all the water ~ no wasteful dumping onto the ground.
