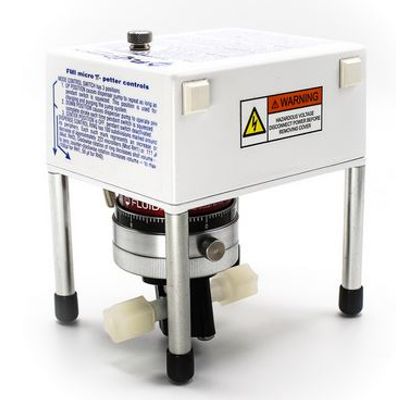

FMI - Model PIP00SKY -Micro Precision Dispenser
The PIP00SKY Micro Precision Dispenser is a great solution for repetitive dispensing of acids, solvents and aqueous solutions.
Most popular related searches
- FMI`s unique low dead-volume pump heads, and synchronous motor drives
- Choose between a single shot dispenser mode using the hand / foot switch or a single metering pump in the continuous mode
- Can be used in a combination of forward and reverse modes
- Flow Rate Max (ml/min): 15
- Flow Rate Min (ml/min): 0.45
- Operating Pressure Max (PSIG): 25
- Operating Pressure Max (Bar): 1.7
- Operating Temperature (F): 140
- Operating Temperature (C): 60
- Wetted Materials: Piston: 316 Stainless Steel
- Wetted Materials: Cylinder Liner: Carbon
- Wetted Materials: Cylinder Case: PVDF
- Dispense Resolution Max (ml/rev): 0.025
- Dispense Resolution Min (ml/rev): 0.003
- RPM (Min/Max): 150 -600
- Input Supply: 115 V AC
- Frequency (Hz): 60
- Current Max (amps): .08 A
