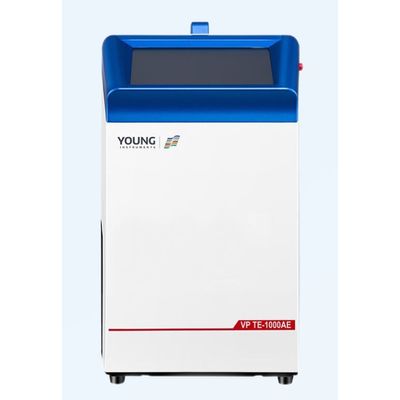

Zeal - Model VP TE-1000AE -Micro-Vapor Pressure Tester

• Employs the internationally advanced triple expansion method.
• No need for sample pre-treatment, with one-button completion of experimental operations.
• Fully automated detection eliminates errors introduced by manual operations.
• Requires 1 ml of sample, with results obtainable in 10 minutes.
• Flexible setting and automatic detection of multiple temperature points, quickly compiling temperature-pressure reference charts.
• Unique cleaning method effectively controls sample cross-contamination, improving detection efficiency and precision.
• Maintenance-free measuring chamber, suitable for high-intensity testing tasks.
• User hierarchical management enables control of accounts at different levels.
• USB plug-and-play interface with optional thermal printer for convenient data management.
• User-friendly human-machine interaction, easy to learn, understand, and operate.
• 7-inch color LCD touchscreen, dynamically displays the experimental process.
• Standards——SH/T 0769, SN/T 2932, ASTM D6378, SH/T 0794, ASTM D5191, GB/T 8017, ASTM D323, EN 13016-1, IP 394.

Operating Environment: 5°C to 40°C, <85% RH

Temperature Range: 0 to 120?

Temperature Accuracy: ±0.1?

Pressure Detection Range: 0 to 1000kPa

Pressure Resolution (sensitivity threshold): 0.01kPa

Repeatability: ≤0.3kPa(@37.8?,70kPa)

Reproducibility: ≤0.7kPa(@37.8?,70kPa)

Sample Test Amount: 1mL (about 10mL sample is needed for rinsing for 3 times)

Gas-to-liquid Ratio: 0.02:1 to 4:1

Interface: RS232*1,RJ45*1,USB*2

Rated Voltage: AC220V/50Hz

Rated Power: 150W

Dimensions: 225mm × 290mm × 390mm

Weight: 12kg
