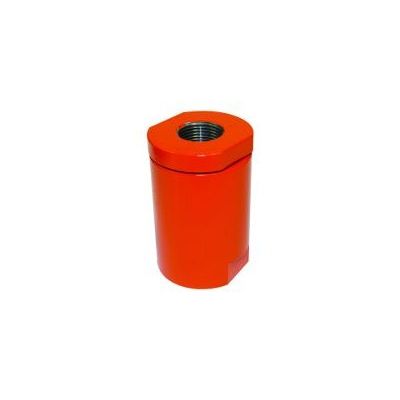

Elmac Technologies - Model MB-IB Series -Microbore In-Line Deflagration Arresters
Elmac Technologies MB-IB series of microbore flame arresters is specifically designed for the protection of gas sampling and analysis equipment where flammable vapours are present. Many other applications involving small bore pipework can be protected from explosion risk using microbore arresters.
Most popular related searches
in-line deflagration arrester
inline deflagration flame arrester
inline detonation flame arrester
flame arrester
detonation flame arrester
gas sampling analysis
gas sampling
gas analysis device
gas sampling system
detonation arrester
A flame arrester uses an element with small apertures which allows gas or vapour to pass. If the apertures are smaller than the maximum experimental safe gap (MESG) for the gas or vapour then a flame cannot pass through the arrester, and is subsequently contained or extinguished.
- Available in 15mm and 20mm nominal bore
- Suitable for explosion groups up to IIB3
- Available in carbon steel or stainless steel
- The Elmac technical team can advise on specific location queries
