Microcell HC Basic Package: "Closed"

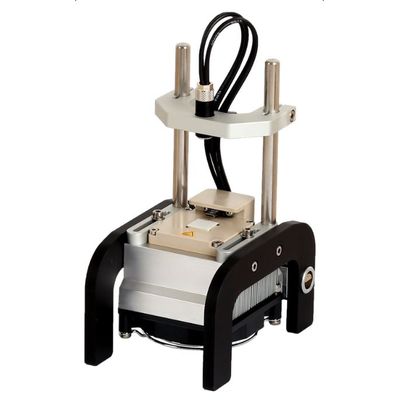

A temperature-controlled cell stand as the basis for all rhd instruments measuring cells. The cell stand contains the peltier element for active heating and cooling of the measuring cell. It allows the hassle-free establishment of the cell connections to the potentiostat. This package is compatible with all closed measuring cells. For open measuring cells, please see the Microcell HC Open.
Most popular related searches
digital temperature controller
temperature cable
potentiostat
atmospheric corrosion
temperature monitoring
pressure monitoring
Article No.: 840101
Technology: Peltier element
Temperature Range: -40 °C to +100 °C
Connectivity: Serial (RS-232), Analog In/Out (on demand)
Scope of Delivery: Microcell HC cell stand, temperature controller, connection cables, heat conductive compound, rhd adapter box BNC - banana, Serial Connection Kit, tools, manuals
The cell stand is intended to be used with all closed rhd measuring cells.
The scope of delivery does NOT include any measuring cells. These need to be ordered individually.
- Line voltage: Uac, rms = 100 to 230 V
- Accessible temperature range during operation (measuring cell): Toperation/cell = -40 °C to +100 °C*
- Temperature range during operation (ambience): Toperation/ambience = +10 °C to +40 °C
- Temperature range for storage: Tstorage = +10 °C to +30 °C
- Relative humidity range during operation and storage (non-condensing): 0 to 100%
- Atmosphere during storage: non-corrosive
- Max. voltage applied to electrodes (measuring cells): Udc, max = +/-30 V; Uac, max = 30 V
- Max. relative pressure applied to closed measuring cells: pmax = 5 bar
- Total weight (Microcell HC cell stand, temperature controller, connecting cables): mtotal = 5 kg
- Size temperature controller: 27 cm x 18.5 cm x 16 cm (l x w x h)
*The low-temperature limit is affected by the ambient conditions (condensing or non-condensing) as well as by the measuring cell type used for the studies. The high-temperature limit is set to +100 °C by default. To achieve the temperature limits in some ambient conditions, the rhd Cooling Box may be required.
