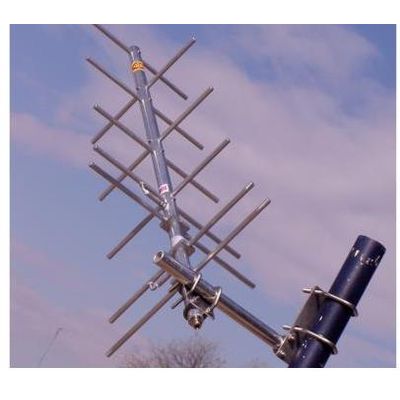

Microcom - Model Yagi-11 -Cross-Polarized Satellite Antenna
The Yagi-11 cross-polarized yagi antenna is a rugged antenna designed for optimum performance for GOES and INSAT Satellite Data Collection Platforms. The driven elements are fed by a solid 3/8" rod feed system that allows for maximum power input. The feed system is completely sealed from elements in order to withstand unusually harsh weather and environments.
Most popular related searches
-
Rugged, Rust-Proof Aluminum
-
LHCP or RHCP
-
11 dBi Gain
- Polarization: LHCP & RHCP (Switchable in the field)
- Gain: 11 dBi
- Center Frequency: 402 to 403 MHz
- 3dB Beam Width: 40º
- VSWR: 1.2:1
- Axial Ratio: 0.8 to 1 dB
- Operating Wind Speed: 150 mph
- Wind Survival: 200 mph
- Material: Aluminum (Rust-proof and oxidation-proof)
- Connector Type: N-Type Female
- Mounting: Fit with 1 or 2 (2.5 OD) with 360º Azimuth and elevation adjustment
- Operating Temperature: -40 to 55 ºC
- Operating Relative Humidity: 0-100% RH
- Weight: 5lbs
- Size: 6 cubic feet
