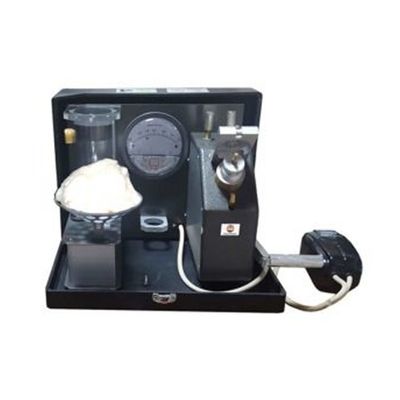

FYI - Model Y175 -Micronaire Tester
Micronaire Tester which also named cotton micronaire tester,cotton fineness tester. FYI is a leading manufacturer and supplier of micronaire tester, and devoting to offering cost effective testing solutions and equipments for various industrial applications.
The Micronaire tester manufactured by FYI based on a diverse range of testing requirements or standards. Engineers available to service machinery overseas. Of course, we also have agents and distributors to assist you timely in over 20 countries around the world.
This cotton micronaire tester is used to test micronaire value of disordered cotton fiber. Cotton fineness tester is an important test instrument for fiber inspection organizations, textile industry, fiber test departments of agriculture research institutes, etc.
Features of cotton fineness tester
- Low noise air pump;
- Indicator can regulate scale and display test value;
- Ease to operate and read test result;
- High accuracy;
- Collection weighing, test integration;
Micronaire Tester is to determine cotton fiber’s micronnaire value.Using the balance weight out a test specimen of mass appropriate to the airflow instrument (8g); pack the test specimen evenly into the compression cylinder then put the compression plunger in position. Using the air pump or other suitable means cause air to flow through the specimen at pressure appropriate to air flow instrument and note the reading on the scale.
Micronaire Tester complies with ISO 2403, BS 3181, ASTM D1448 etc international and retailer standards.
If you need more information about cotton micronaire tester, Please contact with us.
- Temperature range : Room temperature ~ 250?
- Specimen weight: : 7.5~8.5g±0.01g
- Volume : 0.26g/cm3
- Test range
- 2.5~6.5 micronaire value without weight correction
- 2.9~6.5 micronaire value with weight correction
- Accuracy : 0.05 micronaire value
- Power supply : AC220V,50HZ
- Dimension : 220×250×300mm (L×W×H)
- Weight : 8kg
