Micronics - Model U1000MKII-FM -Fixed Clamp-on, Ultrasonic Flow Meter
The New ULTRAFLO U1000MKII-FM is a Fixed, clamp-on, pipe mounted, ultrasonic flow meter, which delivers significant installation savings and non-invasive, dry servicing benefits for pipe sizes ranging from 22mm – 180mm (6″) OD.
Most popular related searches
clamp-on ultrasonic flow meter
ultrasonic flow meter
flow meter
clamp-on flow meter
ultrasonic flow monitoring
flow monitoring
flow monitoring system
water flow monitoring
flow velocity
ultrasonic pipe flow meter
- New: larger pipe range 2 options, fully adjustable for 22mm – 115mm and 125mm – 180mm (6″) OD
- New: Optional Modbus RTU slave, RS485 serial and M-Bus communication
- New: cross correlation flow measurement system
- New: 1Mhz transducers to get through poor/old thick wall pipes and larger pipework
- New: Water/Glycol option

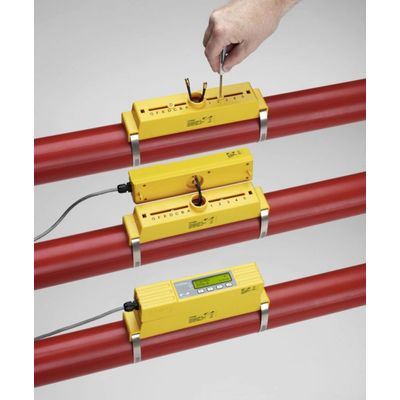

- Simple to install: connect power and enter the pipe inside diameter, adjust the sensors and clamp-on the pipe, no specialist skills or tools required
- A clamp-on non-invasive alternative to traditional in-line meter installation, plus dry servicing, providing minimum downtime and maximum availability.
- LCD with backlight – install & service information.
- Integrated pulse and optional 4-20mA output – aM&T & BEM’s compatible with Modbus.
- Measurement Technique: Utrasonic, cross-correlation transit time method for flow measurement.
- Turn Down Ratio: 100:1
- Accuracy: ±1% – 3% of flow reading for >0.3m/s (>1ft/s).
- Flow Velocity Range: 0.1m/s – 10m/s (0.3ft/s – 32ft/s),
- Pipe Range: Available in 2 options. 22mm – 115mm and 125mm – 180mm OD. Note Pipe size dependent on pipe material and internal diameter.
- Pipe Material: Steel, Stainless Steel, Plastic and Copper
- Water Temp Range: 0°C – 85°C (32°F – 185°F).
- Pulse Output: Pulse or Frequency. Pulse for volume flow and alarms. Frequency for flow rate. The pulse output can be configured as loss of signal or low flow alarm. Opto-isolated MOSFET volt free contact [NO/NC].
- 4-20mA Output: Optional 4-20mA flow proportional output. Resolution 0.1% of full scale. Maximum load 620Ω.
- Modbus Communication: Pipe Mounted:- Optional Modbus RTU slave, RS485 serial link hardware layer. Connection cable 1M.
- M-Bus Communication: Optional M-Bus
- External Power Supply: 12V-24V ±10% AC/DC at 7 watts. Optional plug in 12V power supply
- Electronics Enclosure: IP54.
- Input/Output Cable: 5m x 6 core for power in, 4-20mA and pulse output.
- Dimensions: 250mm x 48mm x 90mm [10″ x 2″ x 4″] {electronics + guide rail).
