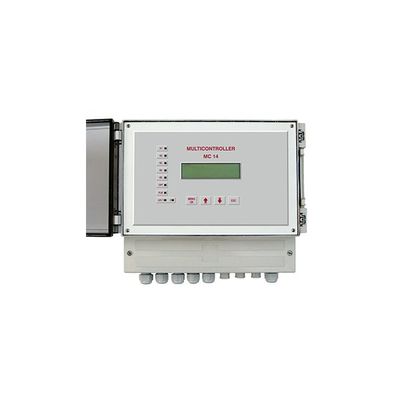

Steiel - Model MC14 -Microprocessor-Based Multicontroller

FromSteiel Elettronica S.r.l.

SHARE

Designed for managing the analysis and adjustment of the basic parameters for water and process liquids. Inputs for 5 simultaneous measurements (4 to be specified + temperature, always provided). Measurements of pH, redox, chlorine, conductivity, turbidity, etc.. Chlorine analysis with amperometric or potentiostatic cell (also available double input for potentiostatic cell). Temperature input for three-wire Pt100 sensor. Simplified interface with 4-button keyboard. Two configuration levels (standard and advanced), protected by two different passwords. Easy and intuitive configuration and calibration. User-selectable interface language among Italian, English, French and Spanish. 2-row alphanumeric LCD with backlight.

Most popular related searches

water flow sensor

industrial instrument

conductivity turbidity

chlorine analysis

Standard power supply at 230 Vac (other options upon request)
Relays can be configured for ON/OFF or proportional control (with settable thresholds), or for NO or NC alarm
User can set an alarm / control to avoid overdosing
2 current outputs, 0-20 or 4-20 mA
OFF input, configurable as NO or NC for disabling outputs (contact from filter pump contactor)
Input from water flow sensor for disabling outputs in case of flow lack
2 level inputs for monitoring the products to be dosed, and disabling the selected outputs in case of liquid lack
Optional 24 Vac output for driving small dosing pumps or solenoid valves without needing additional devices
Analog outputs to export measured values, provided with galvanic insulation
Alarms and errors (diagnostic) directly displayed on the LCD
Date and time label always displayed, even in case of power failure
Configuration / calibration data storage on not volatile memory for at least 10 years
Data log downloadable via serial line (internal data logger)
RS232 or RS485 serial port, with galvanic insulation, for communication with PC, RW14 remote control system or µMMC4 data recorder
The unit can be supplied prewired and mounted on a panel, complete with measurement sensors, dosing pumps and data recording system
