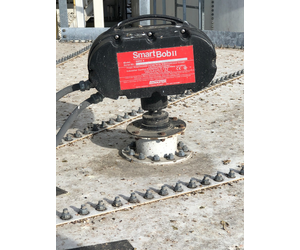

BinMaster - Model SmartBob II-SBR -Microprocessor-Driven Remote Sensor
The SBR II 115 is a microprocessor-driven SmartBob II remote sensor with 115 VAC, a corrosion-resistant polycarbonate enclosure, and an air inlet port. It is hazardous location approved and C/US listed for Class II, Groups E, F, and G. The AO models do not have hazardous location approvals.
SmartBob® revolutionizes tape measure automation and is the cornerstone of a comprehensive level measurement solution. This system employs cable-based sensors to accurately measure levels in bins up to 150 feet in height. It eliminates tedious bin-climbing routines as SmartBob simplifies and automates inventory when used with Binventory or BinCloud software.
Offering versatility, SmartBob comes in various models tailored for Submersed Solids (SS) in brine tanks and an Analog Output (AO) variant equipped with built-in 4-20 mA output. With options ranging from high-temperature tolerances, to cable variations, and mounting accessories, Smart Bob will help you conduct inventory efficiently.
SmartBob®: Automates the tape measure
The SmartBob remote is the core of a complete level measurement system using cable-based sensors to reliably measure levels in bins up to 150 feet tall.
Tired of climbing bins? Want to automate and keep it simple?
Bob is a model citizen:
Submersed solids: The SS is designed for brine tanks and measuring the level of solid materials below a liquid surface.
Analog Output: The AO has a built-in 4-20 mA output and integrated keypad that automatically transmits data to a PLC with every measurement.
MultiBob: Mount from 2 to 32 remotes on a single vessel and Binventory software will average the measurement data from all the sensors.
High Temperatures: The HT remote is designed with a standpipe that allows the remote to be used at process temperatures between 240°F and 500°F.
Options galore!
Software: Level data on an BinCloud web application or the Binventory LAN-based software
Consoles: C-100 push-button console is a centralized local display for all your bins
Cable: Nylon, Teflon jacketed, bare stainless steel, and FDA-approved nylon.
Probes: Spikes, spheres, inverted cones, Teflon coated, digestible bottles, and glass
Mounting plates: 0° for flat roofs; 5°, 10°, 15°, 20°, 24°, 30°, 35°, and 40° angled for sloped roofs
Heaters: Optional protection keeps the gearbox warm in cold climates
Pipe extensions: CPVC and stainless steel in lengths from 6 to 60 inches
Why you will love Bob:
- Works in solids, slurries, brine, or liquids
- Vessel heights up to 150 feet
- Works in dust, immune to noise
- Built-in cable cleaning system
- No field calibration required
- Class II, Groups E, F & G certifications
SmartBob is an economical mechanical solution with a long service life. Get a quote today!
Inventory Management
Ensure adequate supply for production, prevent material shortages.
Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.
Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.
Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.
Sediment Levels
Detect solid material settled in a tank containing liquids
- SKU: SBR.
- Means of Measurement: Plumb Bob
- Measurement Type: Continuous Level
- Medium: Solids, Liquids
- Voltage: 115 VAC, 230 VAC
- Outputs: SmartBob Protocol
- Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
- Process Temperature: Up to +500°F (260°C)
- Approvals: CSA Class II, Groups E, F & G
- Enclosure Type: NEMA 4X, NEMA 5
- Enclosure Material: Plastic
- Mounting: 3" NPT
- Conduit Entry: 0.75" NPT
- Range: 150 ft. (45 M)
