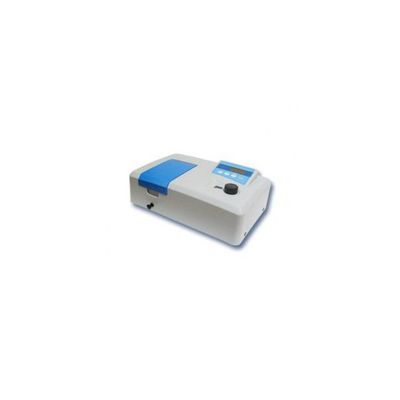

ESICO - Model 2305 -Microprocessor Visible Spectrophotometer

FromEnvironmental & Scientific Instruments Co.

SHARE

Microprocessor Spectrophotometer is a solid state microcontroller based instrument designed for quick and accurate spectrophotometric analysis of any concentration. It operates at a wavelength range of 325 nm to 1000 nm. The output is available on a 4 Digit seven segment bright red LED display in terms of %Transmission (%T), Absorbance (Abs.), Concentration (Conc.) and Kfactor. The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility.

Most popular related searches

visible spectrophotometer

tungsten halogen lamp

spectrophotometer

tungsten light source

This is the most economical, reliable, rugged and accurate instrument. The system has 4 soft touch membrane type keys for ease of operation. It has a ‘Mode’ key for easy switching of various operating modes. Facility for automatic setting of zero / blank is provided.
Provision has also been made for attachment of any dot matrix printer using centronics interface and PC connectivity through USB port.
System has a 4-Position rapid cuvette changer (Test Tube Holder) selector.

Business Type: Manufacturer, Exporter, Supplier
Optics: Single Beam, Grating 1200 lines/mm
Wavelength Range: 325 – 1000mm
Wavelength Resolution: 2mm

Microprocessor Based
4 Digit Seven Segment Bright Red LED Display
Easy to Use, Press one button for easy switching of %T, Abs., Conc. modes
Auto Zero and Blank
Printer Attachment Facility
PC Connectivity through USB
Large Sample Compartment, can accommodate 5-100 mm path length cuvettes with optional holders.

Wavelength Accuracy: ± 2mm
Photometric Accuracy: ± 0.5 %T
Photometric Repeatability: 0.3 %T
Photometric Range: 0 – 200 %T, – 0.3 to 3A, 0 – 9999 Conc.
Photometric Mode: %Transmission, Absorbance, Concentration and KFactor
Stray Light: < 0.3 %T
Stability: ± 0.002 A/h @ 500 nm
Display: 4 Digit 7-Segment Bright Red LED
Detector: Silicon Photodiode
Output: USB port for PC Connectivity, Parallel Port for Dot Matirx Printer
Light Source: Tungsten Halogen Lamp
Power: 230 V ±10% AC, 50 Hz
Dimensions (L x B x H): 420 x 280 x 180 mm (Approx.)
Weight: 8 Kg (Approx.)
Accessories: Glass Cuvettes – A set of 4, Mains Lead, Black Block, Operation Manual and Dust Cover
