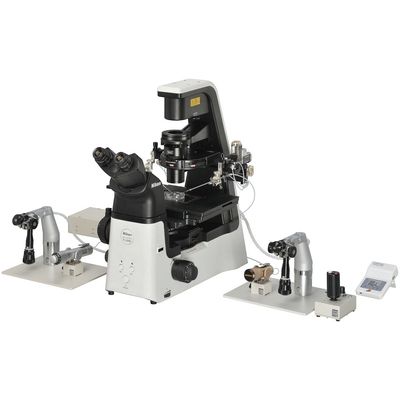

Tokai Hit - Model Thermo Plate -Microscope-Stage Automatix Thermocontrol System
Ensure more accurate and more reliable thermal control of the specimens during the observation under a microscope. Wide product range supports Biotechnology Science and Industry.
Compact Controller
Miniaturize the controller to as same size as smart-phone
It is very useful for space saving in the clean bench.
Controller dimensions:W85×D135×H30 (mm)
Size:232 (?) Weight:170 (g)
Applied strengthen glass or hard glass for the glass heater and with 10 year free-repair service for glass breakage.
No more glass breakage and no more stopping your experiment.
Plate LED Indicator visualizes the plate condition by not seeing the controller.
Easy calibration to set the suitable PID value on your usage environment is available with just one-touch.
Tokai Hit’s ThermoPlate is calibrated with the controller and the plate as a set
to make the center of the plate temp. to be at 37.0? when the room temp. is 25?±2? prior to the shipping.
In addition to PID control, Continuous Current Control minimizes the focus drift generated by thermal expansion
and it also prevents light intensity change compared to the conventional ON/OFF control.
Attached sterilized sensor can measure the actual temperature and correct the plate suface temperature.
Enable to monitor and log the data of temperature which the sensor measures.
