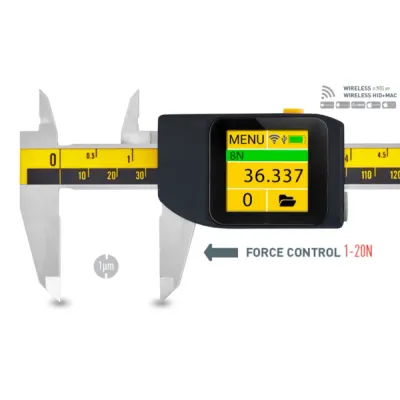

MICROTECH - Computerized e-Force Caliper with Multi-Force Control 1-20N

SHARE
The Computerized e-Force Caliper by MICROTECH integrates advanced multi-force control capabilities, allowing precise measurements with a selectable force range of 1-20N. This feature ensures consistent application of force during measurements, enhancing accuracy and measurement reliability. It offers both wireless and USB data outputs, compatible with Industry 4.0 standards. Equipped with a Swiss-made reading system, it boasts a resolution of 1 micron and supports various measurement ranges of 150, 200, and 300 mm. Key functionalities include internal memory for statistical analysis, Go/NoGo indication, and peak measurement logging. Additionally, it has a rechargeable Li-Pol battery and a color touchscreen display. The caliper supports wireless and USB data transfer to a diverse range of operating systems, ensuring seamless data integration. Meeting ISO 17025:2019 standards, each device comes fully equipped with a calibration protocol, manual, and a magnetic charging cable.
Most popular related searches
digital caliper
metrology
waterproofing

Computerized e-Force caliper MICROTECH with multi Force 1-20N control with Wireless and USB data output adopted to Industry 4.0.

MICROTECH update calipers with electronic multi-Force control module, that gives possibility measure all time with a same Force. Measuring Force can be selected throw menu in range 1-20N. Automatic Force mode gives possibility saving to memory or transfer to app actual value upon reaching a given Force (1-20N). Patented e-Force technology improving accuracy of caliper and automized measuring process.
These precision calipers has 150, 200, 300 mm (6, 8, 12 inch) ranges.
Swiss made reading system has 1 micron resolution.
Computerized MICS measuring system of caliper has such functions:

  • internal memory with statistic mode
  • Color Go/NoGo indication (limits)
  • Peak function (Min/Max)
  • Timer (reading to memory or data transfer)
  • Formula – calculation indicator Ax2+Bx+C
  • Resolution selection (1 / 10 microns)
  • mm/inch selection
  • Temperature compensation
  • Mathematical error compensation
  • Wireless data transfer to Windows, iOS, Android devices
  • USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
  • Built in rechargeable  Li-Pol battery with magnetic charger
  • Color hi-res display 1,54 inch with Touchscreen.

MICROTECH WIRELESS caliper has 3 data transfer modes:

  • WIRELESS data transfer to MDS app (available app’s versions for Windows, Android, iOS, MacOS)  Link to MDS app’s
  • WIRELESS HID mode direct to any device and app (like a keyboard)
  • WIRELESS HID+MAC mode direct to any device and app (like a keyboard) with MAC address

MICROTECH calipers pass metrological control in accredited ISO 17025:2019 metrological lab.

All calipers complete with calibration protocol, manual, magnetic charging cable and plastic box.

Meas. range: 150 mm / 6 inch, 200 mm / 8 inch, 300 mm / 12 inch

Range up to, mm: 300

Reading: 0,005mm/.0002 inch

Data output: USB HID, Wireless, WIRELESS HID

Waterproof: IP54

Indication: Computerized 2.0"

Battery: Li-pol

Calibration: ISO 17025

Jaws type: Carbide jaws, Standard jaws
