MICROTECH - Sub-micron Computerized Micrometer with Industry 4.0 Capabilities

FromPSME MICROTECH

SHARE

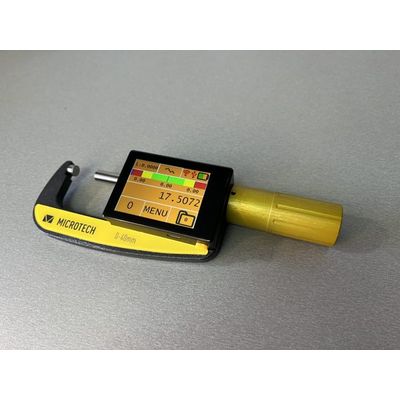

The MICROTECH sub-micron computerized micrometer is engineered with a non-rotating spindle, making it well-suited for measuring delicate materials such as foil, film, and soft materials. This advanced measuring tool features a computerized system patented by MICROTECH, with a resolution of 0.1 microns. It offers flexibility with USB and wireless HID connectivity and is housed in an IP65-rated enclosure for enhanced durability. The micrometer is designed to integrate into Industry 4.0 environments, allowing for the addition of custom functions and formulas per customer requests. With a measuring range that spans from 0 to 200 mm, it addresses diverse measurement needs. Hand-finished measuring surfaces with roughness parameters (Ra<0.32) ensure precision, and each unit undergoes stringent metrological control in an ISO 17025 accredited laboratory. The micrometer's 2.4” computerized display provides clear readouts, and it incorporates a rechargeable Li-pol battery for extended usage. This tool exemplifies high precision and adaptability in industrial measurements.

Most popular related searches

laboratory accreditation

MICROTECH manufacturing Tablet Sub-micron micrometer with non-rotating spindle adopted to Industry 4.0

Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution and non-rotating spindle for measuring foil, film and soft materials.

TABLET measuring module of micrometer has such functions :

ON-line GRAPHICAL mode
Color ANALOG adjustable scale
HUB Connection (external MICROTECH Wireless device connection)
2D Connection possibilities (external device Wireless connection and indication)
PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode
internal MEMORY for 2000 values with Folders system and statistic,
LIMITS (Go/NoGo) function with color indication,
PEAK (Max/min),
TIMER
FORMULA Ax2+Bx+C
Manual TEMPERATURE COMPENSATION
LINEAR compensation
RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
CALIBRATION date control
Rechargeable Li-Pol battery with micro-USB socket
FIRMWARE Update with USB cable
WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH micrometers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.

IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 MICROMETERS FOR CUSTOMER REQUEST

Resolution, mm: 0.0001

Data output: USB HID, Wireless, WIRELESS HID

Waterproof: IP65

Indication: Computerized 2,4”

Battery: Li-pol

Meas. range: 0-40 mm / 0-1.5 inch, 40-80 mm / 1.5-3 inch, 80-120 mm / 3-5 inch, 120-160 mm / 5-6.5 inch, 160-200 mm / 6.5-8 inch
