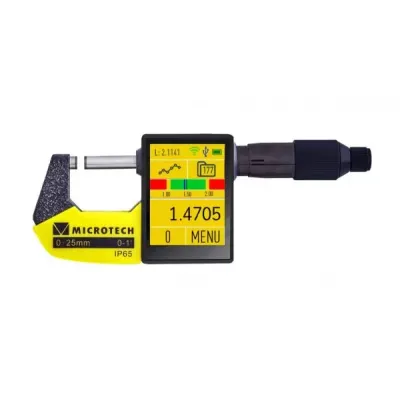

MICROTECH - Sub-Micron Tablet Micrometer for Industry 4.0

FromPSME MICROTECH

SHARE

The Sub-Micron Tablet Micrometer engineered by MICROTECH excels in precision measurement with a resolution of 0.1 micron, suitable for Industry 4.0 applications. This advanced micrometer utilizes a patented computerized measuring system (Patents UA126928, UA99686), ensuring exact readings. It incorporates a user-friendly 2.4-inch computerized display for ease of operation. The device supports both USB HID and wireless connections, adhering to IP65 standards for robust environmental protection. Adaptable to customer-specific requirements, additional functionalities or formulas can be incorporated to cater to unique measurement needs. The micrometer spans a range of up to 400 mm, suitable for a variety of industrial measurement tasks. Each unit undergoes metrological control in ISO 17025 ILAC accredited labs, ensuring high-quality performance across various applications.

Most popular related searches

laboratory accreditation

MICROTECH manufacturing Tablet Sub-micron micrometer adopted to Industry 4.0

Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution

TABLET measuring module of micrometer has such functions :

ON-line GRAPHICAL mode
Color ANALOG adjustable scale
HUB Connection (external MICROTECH Wireless device connection)
2D Connection possibilities (external device Wireless connection and indication)
PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode
internal MEMORY for 2000 values with Folders system and statistic,
LIMITS (Go/NoGo) function with color indication,
PEAK (Max/min),
TIMER
FORMULA Ax2+Bx+C
Manual TEMPERATURE COMPENSATION
LINEAR compensation
RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
CALIBRATION date control
Rechargeable Li-Pol battery with micro-USB socket
FIRMWARE Update with USB cable
WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions).
WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH micrometers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.

Resolution, mm: 0.0001

Data output: USB HID, Wireless, WIRELESS HID

Waterproof: IP65

Indication: Computerized 2,4”

Battery: Li-pol

Meas. range: 0-25 mm / 0-1 inch, 25-50 mm / 1-2 inch, 50-75 mm / 2-3 inch, 75-100 mm / 3-4 inch, 100-125 mm / 4-5 inch, 125-150 mm / 5-6 inch, 150-175 mm / 6-7 inch, 175-200 mm / 7-8 inch, 200-225 mm / 8-9 inch, 225-250 mm / 9-10 inch, 250-275 mm / 10-11 inch, 275-300 mm / 11-12 inch, 300-350 mm / 12-14 inch, 350-400 mm / 14-16 inch
