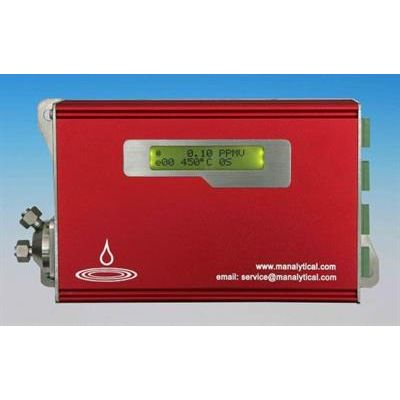

MicroView - Mini Hygrometer / Moisture Analyzer

The MicroView Mini is ideal as a stand-alone transmitter, or as the keystone of a more complex system solution.

• Temperature Controlled Silicon Sensor transfers laboratory accuracy in to the field, offering a Transfer Standard instrument with unrivalled speed of response.
• Automatic and manual Push Purge® Sensor drydown for rapid response and elimination of hysteresis.
• Multiple inputs, outputs and alarms allow the MicroView Mini to be used in system configurations.

• Sensor Type Silicon Sensor, Temperature Controlled to 46°C
• Operating Ranges 0.1 to 100 ppm[V], 1 to 1000 ppm[V]. Other ranges and scales available upon request.
• Speed of Response Full scale ‘wet’ to ‘dry’ in
• Diagnostics Automatic and manual Push Purge® feature. Push Purge® aids sensor drydown, confirms that the senor and electronics are operational and highlights the presence of contamination. Push Purge® confirms if the speed of response of the analyser is maintained, validates readings on-line and removes hysteresis before each measurement.
• Inputs / Outputs 4 inputs / outputs (including 4-20mA and RS485) for maximum flexibility
• Alarms 4 user definable alarms
