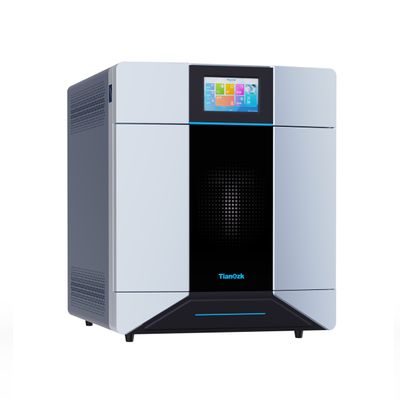

Tianyi Zhongke - Model R5 Series -Microwave Digester Instrument

• Product Model: R5 Series
• Manufacturer type: Production company
• Updated: June 27, 2025
• Number of visits: 5090

• Brand: Tianezk/Tianyi Zhongke
• Maximum temperature: 250?
• Sample quantity: 40-44 pcs/batch
• Price range: 300,000-400,000
• Application Areas: Environmental protection, food/agricultural products, agriculture, forestry, animal husbandry and fishery, energy, pharmaceuticals/biopharmaceuticals
• Maximum pressure: 1500Psi
• Microwave source: 3200
• Cavity level: Industrial Grade
• Origin Category: Domestic

• Product Name: Microwave digester
• Product Model: R Series
• Batch processing capacity: 24-44 bits optional

Tianyi Zhongke-R5 microwave digester is suitable for sample digestion, synthesis, extraction, ashing, sintering, drying and other treatments in industries such as food, medicine, quality inspection, industry, agriculture, disease control, chemical industry, geology, metallurgy, materials, universities, and scientific research institutes.

• Temperature and pressure dual control - non-contact temperature and pressure control system, constantly monitors the temperature and pressure response of the sample tank, automatically alarms and stops working in case of abnormality.
• Industrial furnace chamber - 316L stainless steel one-piece furnace chamber, surface anti-corrosion treatment, acid, alkali and high pressure resistance.
• Furnace door - multi-layer steel structure floating furnace door design, strong impact resistance, the furnace door cannot be opened during operation.
• Pressure relief module - elastic buffer pressure relief, automatic pressure relief in case of overpressure.

• Digestion inner tank - TFM+PFA material, resistant to high pressure, acid and alkali corrosion.
• Digestion outer tank - PEEK mixed with glass fiber or aerospace composite materials.
• Design consumables - no consumables.
• Pressure relief module - elastic buffer pressure relief, automatic pressure relief in case of overpressure.
• Digestion tank capacity - 55, 70, 85, 100, 110ml optional.

• Automatic digestion vessel identification system, which can locate digestion vessels and their quantity.
• Sound and light recognition system, which can resolve status through changes in sound or light.
• The real-time temperature and pressure changes of any digestion vessel can be displayed via a bar chart.
• Automatic frequency conversion function, which matches the equivalent power value in real time according to the number of digestion tanks and the temperature of the digestion tanks.
• Equipped with a solvent sensor, it can automatically stop working when the digestion vessel overflows.
• Equipped with a noise sensor, the instrument can automatically stop working and sound an alarm when abnormal sounds or loud popping noises are detected.
• Equipped with a flame sensor, the instrument will automatically stop working and sound an alarm when there is ignition or open flame inside the furnace chamber.
• Level 3 administrator mode, login requires verification.
• It can automatically save digestion data, view it in real time, and generate electronic documents for export or printing.
• Enables remote connection and control via IoT functionality; upon completion of instrument operation, it can send information notifications to the terminal.
• Multi-screen viewing allows for real-time observation of the cavity via camera and playback of instrument operation tutorial videos.
