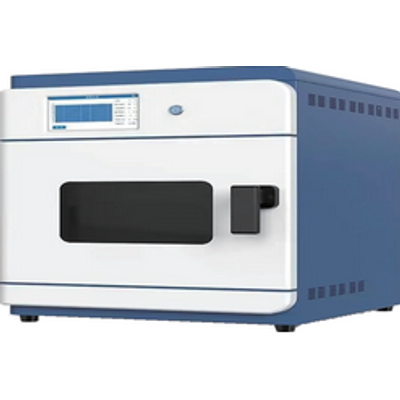

Zetian - Model 6010 -Microwave Digestion System
The 6010 Microwave Digestion System is designed for laboratory applications such as digestion, extraction, protein hydrolysis, concentration, drying, and synthesis. Its primary function is to accelerate sample pretreatment reactions, significantly reducing processing time and improving efficiency. System Components Magnetron: Output power 0–1800?W ±15% (IEC standard) Corrosion-resistant inner chamber Exhaust fan and duct system Automatic turntable Interlock and detection switches: Prevent microwave emission when the door is open.
Most popular related searches
microwave digestion system
microwave digester
digester system
microwave digestion
digestate
digester
digestion vessel
infrared sensor
fiber optic sensor
water quality
- Automatic sample cup recognition: Adjusts output power based on sample quantity
- Multi-mode temperature sensing: Combines platinum resistance, fiber-optic, and infrared sensors for direct and full-vessel temperature monitoring; real-time comparison between main and auxiliary vessels ensures precise control
- Piezoelectric pressure sensing: Monitors internal pressure with high reliability; includes active overpressure release for safe operation
- Color LCD display: Shows temperature, steps, time, power, and heating curves for each vessel; optional video system enables real-time observation of digestion process
- Built-in digestion methods: Simplifies operation; client-side interface allows real-time display and editing of temperature, pressure, and microwave power parameters; customizable report formats
- Chemical Analysis
- Environmental Monitoring
- Food Safety
- Biomedical Research
- Pharmaceutical Testing
- Power Supply: 220 ~240VAC 50/60Hz 16A
- Microwave Source: 2450MHz，2450 MHz, variable-frequency magnetron
- Total Installed Power: 3600W
- Max Microwave Output Power: 2200W
- Microwave Chamber: Large-volume 316L stainless steel with multi-layer PTFE corrosion-resistant coating
- Explosion-Proof Door: Multi-layer steel sliding door with electronic/mechanical dual control
- Pressure Control: Piezoelectric sensor, range 0–15 MPa, accuracy ±0.01 MPa
- Temperature Control: Platinum resistance, fiber-optic, and infrared sensors; multiple modes available
- Pressure Relief: Explosion-proof door enables sliding pressure relief; digestion vessel features top-mounted safety release design for directional and quantitative overpressure discharge
- Overheat Protection : Real-time monitoring of microwave source and waveguide temperature; auto shutdown of microwave emission upon abnormal overheating
- Visualization: Optional monitoring system for real-time digestion observation
- Communication Interfaces: USB, Ethernet, RS232
- Exhaust System: 125 cm²/s airflow
- Operating Conditions: 0~40℃/15~80％RH
- Dimensions/Weight: 580*680*700 mm (W*D*H) / 72 kg
- Digestion Vessel & Rotor Configurations: 16-position high-pressure vessels; 18-position ultra-high-pressure vessels; 40-position medium-high-pressure vessels
