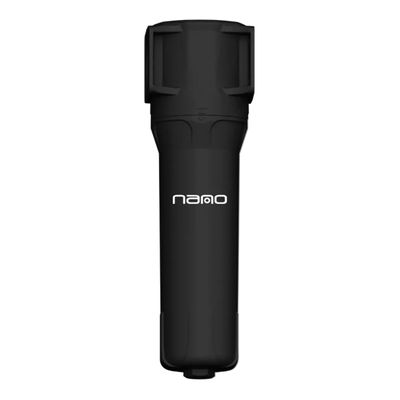

Nano - Model G50N Series -Mid-Pressure Aluminum Filters
The nano mid-pressure compressed air and gas filters are expertly engineered to excel in high-pressure applications, delivering reliable performance at up to 725 psig. These filters are ideal for demanding environments, including PET bottle manufacturing, offshore instrumentation, medical facilities, and heavy industrial settings. Designed to ASME standards, this premium product range is manufactured in a ISO 9001 approved facility and rigorously tested to meet ISO 8573-1:2010 standards. Trust in our filters to meet and exceed your operational needs.

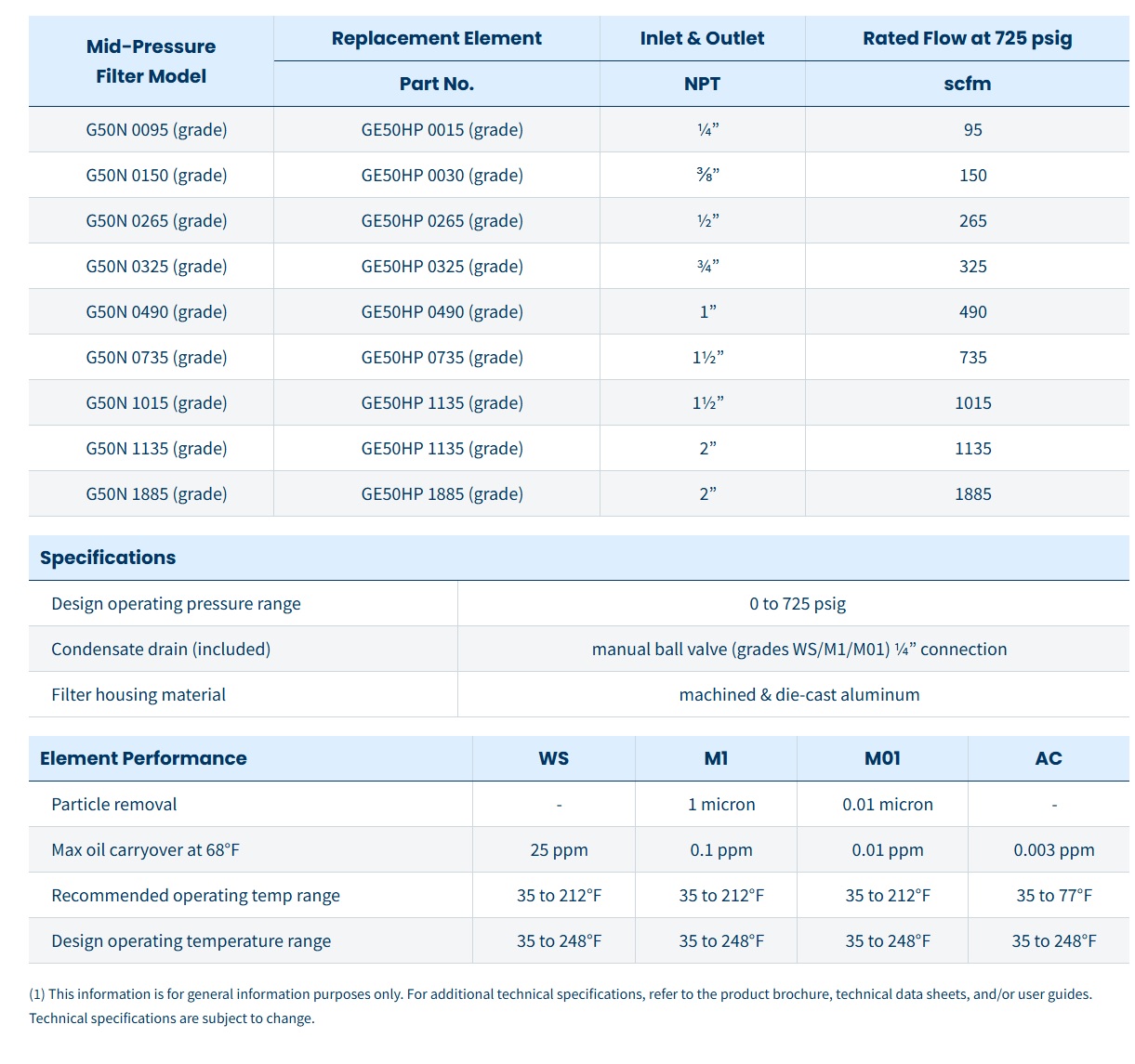

- Flow Rate: 95 to 1885 scfm
- Connection: ¼” to 2” NPT
- Filtration: 1 & 0.01 micron, AC
Proprietary Media Technology
Custom engineered hydrophobic and oleophobic borosilicate glass microfiber media repels oil and water for high efficiency filtration with minimal pressure drop
Exceptional Design
Our design incorporates an innovative push-fit element design with dual o-ring seals to ensure optimum sealing and mechanical strength
Quality Elements
Robust design with internal/external stainless steel support cores and glass filled nylon end caps
