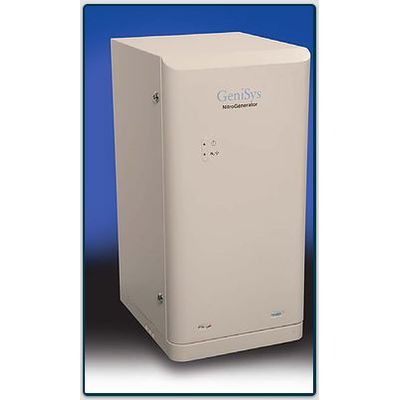

Texol GeniSys - Model NG Series -Mid Range Laboratory Nitrogen Generator
Our mid range Laboratory Nitrogen Generator perfect for GC`s and high precision analysis equipment. With up to 99.9995% High purity nitrogen. The award-winning GeniSys NitroGenerator is a flexible and expandable state-of-the-art Nitrogen Generator that produces flows from 1 to 10 l/min and simply produces nitrogen when you want it. The GeniSys NitroGenerator is a discrete, efficient, modular system that produces high purity nitrogen only when you need it – all you need is compressed air. The NitroGenerator uses PSA technology for superior performance and reliability. A range of models is available to cover most applications. When selecting a system, consideration should be given to the required flow rate, purity and delivery pressure. The larger units are fitted with castors to allow them to be manoeuvred easily into position below a bench top. All of the units in the range are built on a modular design to allow the capacity to be expanded upon.
Our range of high purity and low maintenance Nitrogen Generators that offer flexibility and outputs from 1 - 10L/min.
Utilising Pressure Swing Adsorption technology the Texol NG series provides ideal performance, efficiency and reliability. High purity nitrogen is delivered as and when required. All models in the range are mobile to allow easy repositioning and installation under a workbench.
The NG series provides flexibility to match your system requirements. We can customise the purity, flow rate and delivery pressure to suit your specifications.
- High Purity Nitrogen (up to 99.9995%)
- Compact and lightweight
- Low Power requirement
- Flow rates from 1 I/min to 10 I/min
- Output Pressure 80 psi (5.4 Bar)
- Stand-By Mode
- Vessel Leak Detection
- Ionisation (API-ms)
- GC-FID (Carrier gas)
- GC-FID (Make-up gas)

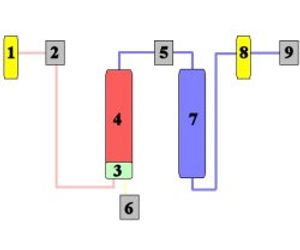

Air from an external source enters the generator via a 0.01-micron filter [1] that removes contaminants and bulk moisture via an integrated auto drain. When the control system assesses that more nitrogen is required, solenoid valve [2] is opened and the pressure is allowed to build in the column [4] containing Carbon Molecular Sieve (CMS) and a residue moisture catcher [3]. This sieve adsorbs the oxygen and leaves the dry nitrogen free to flow into the reservoir [7]. After this point, the Nitrogen is allowed to flow to the application via another 0.01- micron filter [8] and pressure and flow regulators [9].
- Flow rate (l/min): 1-10
- Purity: Up to 99.9995% (5 ppm residual O2)
- Dewpoint: -40
- Inlet Pressure (Barg/PSIg):
- Purity dependent (7 Barg minimum)
- Outlet Pressure (Barg/PSIg): 5.4 / 80
- Power (W): 8.1
- Voltage: Plug-in transformer (supplied) converts voltages from 110-230VAC to 24VDC
- Height(mm): 645-768 (depending on the requirements)
- Width(mm): 288-760 (depending on the requirements)
- Depth(mm): 143-439 (depending on the requirements)
- Weight(Kg): 14.5-146 (depending on the requirements)
